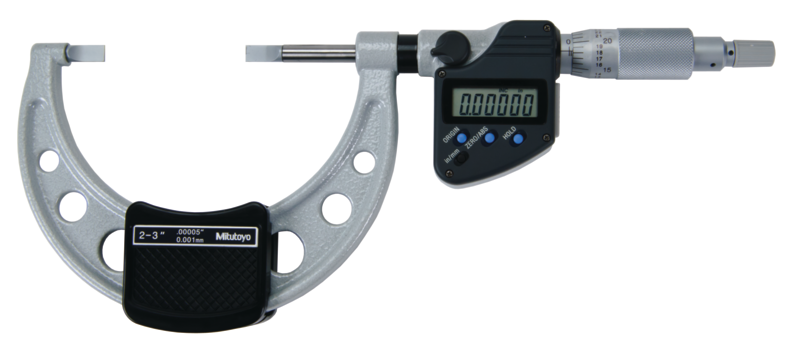

Mitutoyo 422-332-30 | Digital Blade Micrometer | 0.75 mm blade, 2-3 in

Part Number : 422-332-30

Mitutoyo's 422-332-30 blade micrometer uses a 0.75 mm blade and a 2-3 in (50.8-76.2 mm) range to measure shaft groove diameters. A non-rotating spindle keeps both blades aligned in the groove.

  • 0.75 mm blade, range 2-3 in (50.8-76.2 mm)
  • 465 g main unit, 0.00005 in step
  • Non-rotating spindle keeps blades aligned; lockable 6.35 mm spindle
  • With data output; approx. 2.4-year battery life
  • 18 mm satin chrome thimble
  • Reaches groove diameters on shafts
Availability: in stock
