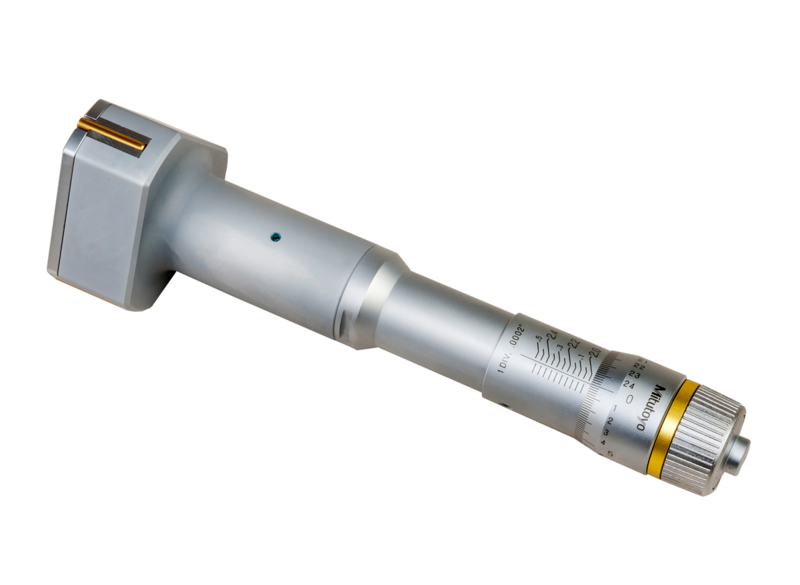

Mitutoyo 368-270 | 3-Point Internal Micrometer Holtest | 2-2.5 in, 0.0002 in
With a 2-2.5 in range and readings in 0.0002 in steps, the Mitutoyo 368-270 is a three-point Holtest that centres automatically for stable bore measurement.
- Titanium-coated hardened steel measuring pins, tungsten carbide taper on the 368-270
- The 368-270 pins carry a titanium coating for durability and impact resistance
- 105 mm reach without extension, 440 g main unit, 0.635 mm spindle pitch on the 368-270
- Packed with box, key and inspection certificate (setting rings and extensions not included, 368-270)
- Specifications
- Features
- Downloads
| Part Number | 368-270 |
| Brand | Mitutoyo |
| Type | Internal micrometer (Holtest) |
| Measuring method | 3-point |
| Range | 2-2.5 in |
| Graduation | 0.0002 in |
| Display | Analog |
| Measuring surfaces | Titanium-coated hardened steel |
| Taper | Tungsten carbide |
| Spindle pitch | 0.635 mm |
| Depth without extension | 105 mm |
| Mass | 440 g |
| Supplied with | box, key, inspection certificate |
These are three-point and two-point internal micrometers that offer you the following benefits:
- Titanium-coated measuring pins give you excellent durability and impact resistance (3-point type).
- Three-point micrometer allows stable measurement through automatic centring.
- It is delivered without setting rings or extensions.
