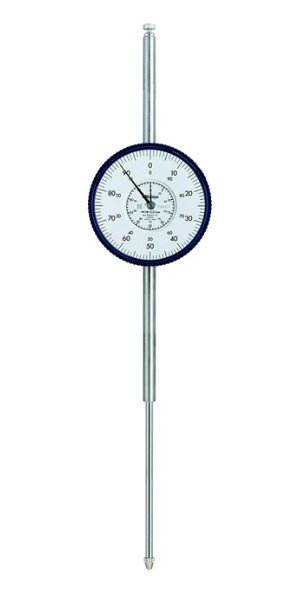

Mitutoyo 3062A-19 | Dial Indicator | 100 mm Range, 0.01 mm Graduation, Lug Back
This dial indicator, Mitutoyo part number 3062A-19, reads to 0.01 mm across a 100 mm range. Mitutoyo lists the 3062A-19 for precise linear measurement and quality control.
- Dial reading ±0-100; 9 µm hysteresis and 3 µm repeatability
- Mitutoyo Series 3, built to the ISO type pattern, mounting lug on the back; ±0.050 mm accuracy
- Measuring force 0.4–3.5 N; 8 mm stem; carbide-tipped contact point with M2.5 x 0.45 mm thread
- Non-digital analogue display; measuring range of 100 mm
- Graduation 0.01 mm; 332 g in weight
- Specifications
- Features
- Downloads
| Part Number | 3062A-19 |
| Brand | Mitutoyo |
| Series | 3 |
| Range | 100 mm (3.94 in) |
| Graduation | 0.01 mm |
| Dial Reading | ±0-100 |
| Measuring Force | 0.4–3.5 N |
| Hysteresis | 9 µm |
| Repeatability | 3 µm |
| Stem Diameter | 8 mm (0.315 in) |
| Back | Lug back |
| Standard | ISO type |
| Contact Point | Carbide tipped, M2.5 x 0.45 mm thread |
| Accuracy | ±0.050 mm |
- Graduation: 0.01mm for precise measurement readings.
- Accuracy: ±0.050mm, ensuring reliable and consistent results.
- Range: 100mm, suitable for a variety of measurement tasks.
- Lug Back Design: Allows for easy and stable mounting during measurements.
- ISO Type: Compliant with ISO standards for high precision and quality.
- Series 3: Known for durability and accuracy in industrial applications.
