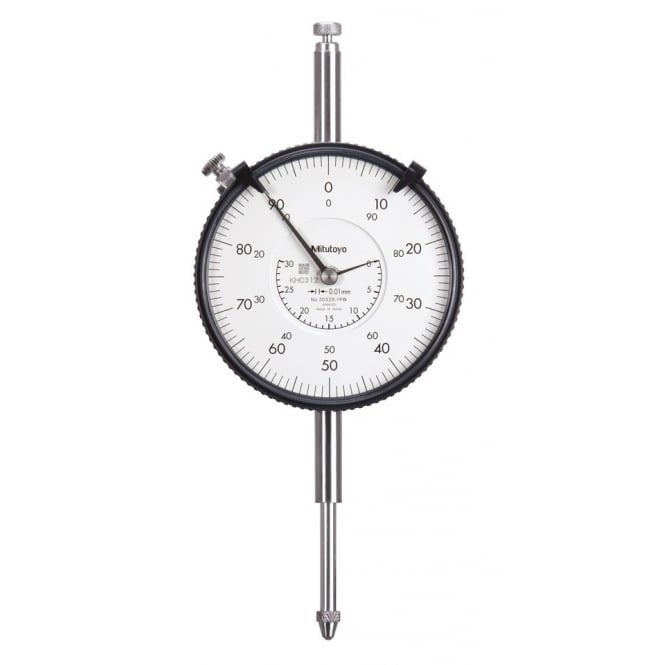

Mitutoyo 3052S-19 | Large Diameter Dial Indicator | 30 mm Range, 0.01 mm Graduation
Mitutoyo's 3052S-19 large diameter dial indicator covers 30 mm with a 0.01 mm graduation. The 3052S-19 is intended for general measurement applications.
- 0-100 dial graduations; jewelled bearings in the movement
- Large-diameter dial face for easy reading; shockproof construction
- Supplied with limit markers and a bezel clamp; stem and plunger in high-strength, quench-hardened stainless steel
- Measuring force of 2.5 N or less; analogue pointer readout
- Graduated in 0.01 mm steps; measuring range of 30 mm
- Specifications
- Features
- Downloads
| Part Number | 3052S-19 |
| Brand | Mitutoyo |
| Range | 30 mm (1.18 in) |
| Graduation | 0.01 mm |
| Dial Reading | 0-100 |
| Measuring Force | 2.5 N or less |
| Dial Type | Large diameter |
| Bearing | Jewelled |
• Dial indicators with a large-diameter dial face for easy reading.
• Models with longer measuring ranges are also available.
• Both the stem and the plunger are made of high-strength quench-hardened stainless steel suitable for heavy-duty use.
• All types are supplied with limit markers and a bezel clamp as standard
