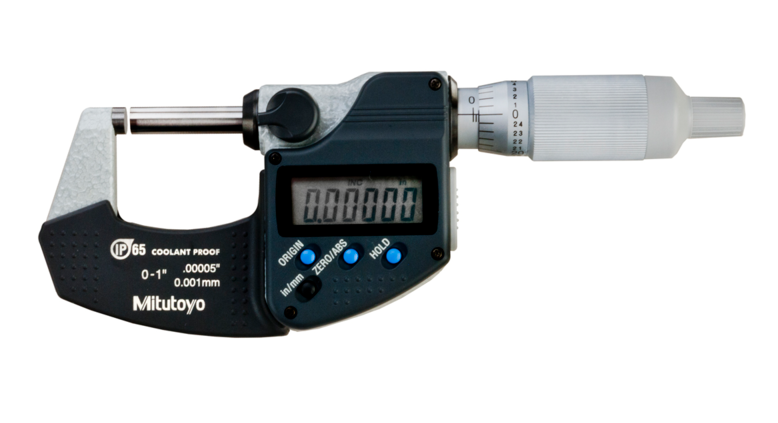

Mitutoyo 293-334-30 | IP65 Digital Outside Micrometer | 0–1 in, Ratchet Thimble, Data Output
Part No. 293-334-30
The Mitutoyo 293-334-30 is a Series 293 IP65 coolant proof inch/metric digital micrometer with a 0-1" (0-25.4 mm) measuring range, 0.00005" / 0.001 mm resolution, ratchet thimble, and Digimatic data output. Genuine Mitutoyo stock from General Tech, authorised distributor in Saudi Arabia. Request a quote - call +966 531 321586.
Product Overview
On a machine shop floor, micrometers get splashed with coolant and cutting oil, and ordinary digital tools can fail or drift. The Mitutoyo 293-334-30 is built for exactly that: a Series 293 coolant proof digital micrometer rated IP65, with a 0-1" (0-25.4 mm) measuring range.
IP65 means the micrometer is dust-tight and protected against water jets from any direction, making it suitable for use where coolant and cutting oil are present. The digital display reads to 0.00005" / 0.001 mm, and the micrometer displays in both inch and metric units, helping reduce reading errors associated with traditional vernier scales.
A ratchet thimble applies a constant measuring force and makes one-handed operation easy, helping maintain repeatable readings between operators. The Digimatic output port lets you send readings directly to a data processor, PC or SPC system, helping reduce manual transcription errors.
Before ordering, confirm the measuring range you need, the display units, whether you need data output for SPC, and your preferred thimble type. Our team can help you choose the right model and arrange calibration. Comparing options? See the Mitutoyo 293-344-30 (without output) before you order.
Key Benefits
-
IP65 coolant proof - dust-tight and protected against water jets
-
0-1" (0-25.4 mm) measuring range
-
0.00005" / 0.001 mm resolution
-
Ratchet thimble for constant measuring force
-
Inch/metric display for flexible measurement
-
Digimatic data output for SPC and data collection
-
Genuine Mitutoyo from an authorised distributor in Saudi Arabia
For pricing and stock availability, call +966 531 321586.
Who This Product Is Best For
-
Machine shops measuring turned and ground parts near coolant
-
Quality teams collecting measurement data into SPC systems
-
Operations working with both inch and metric drawings
-
Inspection departments requiring repeatable digital measurements
How to Specify & Install It
-
Clean the anvil and spindle faces with a lint-free cloth.
-
Close the faces using the ratchet thimble and set the origin.
-
Bring the spindle onto the part using the ratchet thimble - never force the thimble.
-
Send the reading via the Digimatic output, or record it, and clean the micrometer before storage.
Frequently Asked Questions
What is the measuring range of the Mitutoyo 293-334-30?
0-1" (0-25.4 mm), with a resolution of 0.00005" / 0.001 mm.
What does IP65 mean for a micrometer?
It is dust-tight and protected against water jets from any direction, making it suitable for environments where coolant and cutting oil are present.
Does it have data output?
Yes. It has a Digimatic output port for sending readings to a data processor, PC or SPC system.
Can it display both inch and metric?
Yes. The 293-334-30 is an inch/metric model.
Should I choose the 293-334-30 or the 293-344-30?
The 293-344-30 offers the same type of measurement range without data output. Match the range, output requirement and thimble type to your application.
Can the micrometer be calibrated?
General Tech Saudi provides calibration services for dimensional instruments. Ask our team about calibrating your micrometer when you order.
Can you supply other Mitutoyo instruments in the same order?
Yes. General Tech carries a wide range of Mitutoyo micrometers, calipers, indicators and other measuring instruments. Tell us what you need and we can quote them together.
Is genuine Mitutoyo stock available in Saudi Arabia?
Yes. General Tech is an authorised Mitutoyo distributor. Call +966 531 321586 for current pricing, stock and lead time.
For pricing, stock and product enquiries, contact General Tech Saudi at +966 531 321586.
