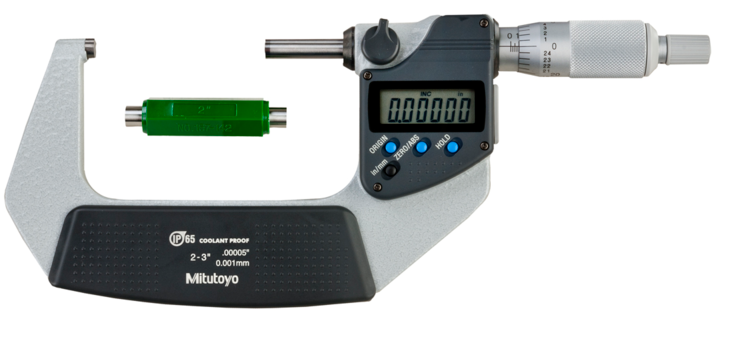

Mitutoyo 293-332-30 | Digital Micrometer IP65 | Inch/Metric Range 2 - 3" (50.8 - 76.2 mm) | with Data Output
The Mitutoyo 293-332-30 is a Series 293 IP65 coolant proof inch/metric digital micrometer with a 2-3" (50.8-76.2 mm) measuring range, 0.00005" / 0.001 mm resolution, and Digimatic data output. Genuine Mitutoyo stock is available from General Tech, an authorised distributor in Saudi Arabia. Request a quote by calling +966 531 321586.
Product Overview
On a machine shop floor, micrometers can be exposed to coolant and cutting oil, where ordinary digital tools may be affected. The Mitutoyo 293-332-30 is designed for these demanding environments as a Series 293 coolant proof digital micrometer rated IP65, with a 2-3" (50.8-76.2 mm) measuring range.
IP65 protection means the micrometer is dust-tight and protected against water jets from any direction, making it suitable for measurement work where coolant and cutting oil are present. The digital display provides 0.00005" / 0.001 mm resolution, while inch/metric operation supports measurements across both unit systems.
Consistent measuring force helps maintain repeatable measurements between operators. The Digimatic data output allows readings to be transferred directly to a data processor, PC, or SPC system, helping reduce manual transcription errors.
Before ordering, confirm the required measuring range, display units, data-output requirements, and preferred thimble type. For ranges above 25 mm or 1 inch, zero the micrometer against a reference standard of the minimum range length. Our team can help you select the appropriate model and arrange calibration.
Comparing options? See the Mitutoyo 293-342-30 (without output) before ordering.
Key Benefits
-
IP65 coolant proof - dust-tight and protected against water jets
-
2-3" (50.8-76.2 mm) measuring range
-
0.00005" / 0.001 mm resolution
-
Inch and metric measurement capability
-
Series 293 Mitutoyo design
-
Digimatic data output for SPC and data collection
-
Suitable for machine-shop and inspection applications
-
Genuine Mitutoyo from an authorised distributor in Saudi Arabia
Call +966 531 321586 for pricing and stock availability.
Who This Product Is Best For
-
Machine shops measuring turned and ground parts near coolant
-
Quality teams collecting measurement data into SPC systems
-
Inspection departments using digital precision measuring instruments
-
Operations working with both inch and metric drawings
How to Specify & Install It
-
Clean the anvil and spindle faces with a lint-free cloth.
-
Set the origin using a reference standard of the minimum range length.
-
Bring the spindle onto the part using the constant-force device; never force the thimble.
-
Send the reading via the Digimatic output or record it manually, then clean the micrometer before storage.
Frequently Asked Questions
What is the measuring range of the Mitutoyo 293-332-30?
The measuring range is 2-3" (50.8-76.2 mm), with a resolution of 0.00005" / 0.001 mm.
What does IP65 mean for a micrometer?
It means the micrometer is dust-tight and protected against water jets from any direction, making it suitable for environments where coolant and cutting oil are present.
Does it have data output?
Yes. The Mitutoyo 293-332-30 has Digimatic data output for sending readings to a data processor, PC, or SPC system.
Can it display both inch and metric?
Yes. This is an inch/metric model with a resolution of 0.00005" / 0.001 mm.
Should I choose the 293-332-30 or the 293-342-30?
The 293-342-30 is the corresponding without-output option. Match the measuring range, data-output requirement, and thimble configuration to your application.
Can the micrometer be calibrated?
General Tech Saudi provides calibration services for dimensional instruments. Ask the team about calibration when ordering.
Can you supply other Mitutoyo instruments in the same order?
Yes. General Tech carries a wide range of Mitutoyo micrometers, calipers, indicators, and other precision measuring instruments. You can request a combined quotation.
Is genuine Mitutoyo stock available in Saudi Arabia?
Yes. General Tech is an authorised Mitutoyo distributor. Contact the team for current pricing, stock availability, and lead time.
