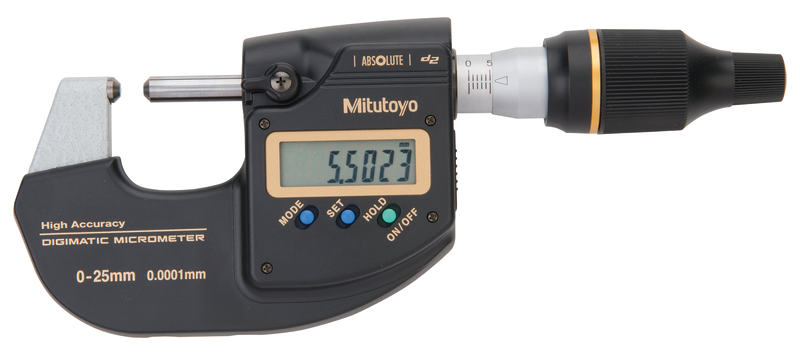

Mitutoyo 293-100-10 | High Accuracy Digital Micrometer | 0–25 mm, 0.1 µm
Part Number : 293-100-10
The Mitutoyo 293-100-10 is a 0–25 mm ABSOLUTE Digimatic high-accuracy micrometer with a 0.1 µm resolution ABS rotary sensor, intended for very accurate hand-held work such as Gauge R&R studies. High-accuracy screw machining keeps instrumental error to 0.5 µm.
- Digital step 0.1 µm or 0.5 µm
- Rigid frame with constant-force mechanism (7–9 N)
- Flatness 0.3 µm, parallelism 0.6 µm
- Spindle lock, ø6.35 mm spindle, 0.5 mm pitch
- Data output and preset; CR2032 battery, approx. 2 years life
- Delivered with box, key, driver, battery, heat insulating cover and inspection certificate
