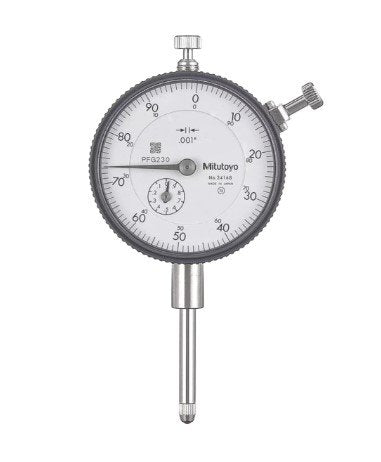

Mitutoyo 2416A-06 | Lug Back Dial Gauge | 1 in, 0.001 in, ANSI/AGD
Mitutoyo's 2416A-06 lug back dial gauge covers 1 in at a graduation of 0.001 in. For inspection and linear measurement, this model is built to ANSI/AGD and part of Series 2, and its lug back provides secure mounting.
- Measuring force of 0.4 - 1.8 N on the 2416A-06; dial reads ±0.0-100.0
- 2416A-06 repeatability: ±0.0002 in; hysteresis: 0.0002 in
- 4-48 UNF thread and 9.52 mm or 0.375 in stem on the 2416A-06
- Sealed frame against dust, oil and moisture (2416A-06)
- Weighs 164 g with a carbide contact point
- 2416A-06: scratch-resistant crystal
- Specifications
- Features
- Downloads
| Part Number | 2416A-06 |
| Brand | Mitutoyo |
| Series | 2 |
| Product Type | Lug Back Dial Gauge |
| Range | 1 in |
| Graduation | 0.001 in |
| Dial Reading | ±0.0-100.0 |
| Measuring Force | 0.4 - 1.8 N |
| Hysteresis | 0.0002 in |
| Repeatability | ±0.0002 in |
| Stem Diameter | 9.52 mm or 0.375 in |
| Back | Lug back |
| Standard | ANSI/AGD |
| Thread | 4-48 UNF |
- Precision Measurement: 0.001 inch graduation with a 1-inch measuring range for high accuracy.
- Lug Back Design: Allows secure attachment to indicator holders and stands.
- ANSI/AGD Compliance: Meets industry standards for interchangeability and reliability.
- Durable Construction: Features a carbide-tipped contact point for wear resistance.
- Scratch-Resistant Crystal: Provides clear visibility and long-term durability.
- Sealed Frame: Protects internal components from dust, oil, and water for consistent performance.
