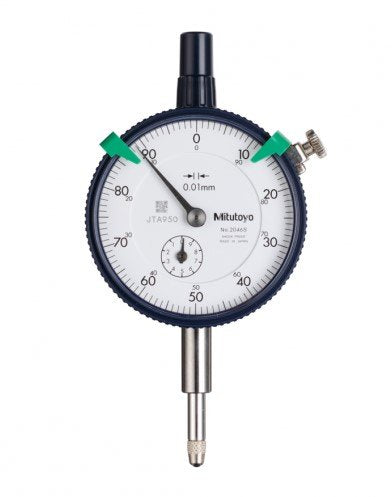

Mitutoyo 2046S-09 | Dial Indicator | 10 mm Range, 0.01 mm Graduation, Lug Back
With 0.01 mm graduations over a 10 mm range and ±0.015 mm accuracy, the Mitutoyo 2046S-09 is a dial indicator. The 2046S-09 has a lug back for secure attachment to a stand or fixture and belongs to Series 2. The 2046S-09 reads in metric units. Listed weight for the 2046S-09 is 146 g.
- Accuracy ±0.015 mm, repeatability 3 µm
- 8 mm stem, M 2.5 x 0.45 mm thread, carbide-tipped contact point
- Weight 146 g
- Specifications
- Features
- Downloads
| Part Number | 2046S-09 |
| Brand | Mitutoyo |
| Series | 2 |
| Type | Dial Indicator |
| Range | 10 mm (0.394 in) |
| Graduation | 0.01 mm |
| Repeatability | 3 µm |
| Stem Diameter | 8 mm (0.315 in) |
| Back | Lug back |
| Contact Point | Carbide tipped |
| Thread | M 2.5 x 0.45 mm |
| Accuracy | ±0.015 mm |
| Units | Metric |
| Weight | 146 g |
- Lug Back Design: Convenient for easy mounting and stable positioning.
- Graduation of 0.01mm: Provides good precision for a range of tasks.
- Accuracy of ±0.015mm: Ensures dependable results in moderate tolerance applications.
- Range of 10mm: Suitable for measurements within this moderate range.
- Durable Construction: Built to withstand the demands of industrial and workshop environments.
- Clear and Readable Dial: Ensures easy and accurate interpretation of measurements.
