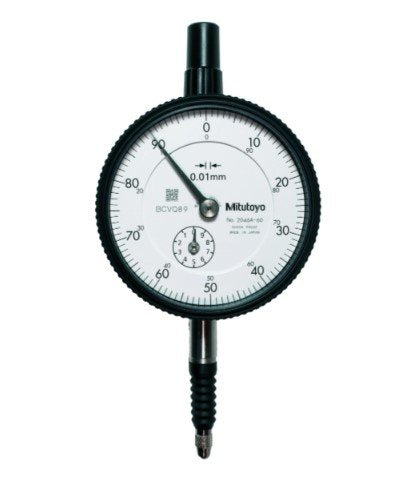

Mitutoyo 2046AB-60 | Dial Gauge | 10 mm Range, 0.01 mm Graduation, Flat Back
With 0.01 mm graduations over a 10 mm range, the Mitutoyo 2046AB-60 is a dial gauge. The 2046AB-60 has a flat back that sits flush on fixtures, follows the ISO type layout and belongs to Series 2. The 2046AB-60 reads in metric units on a ±0.0-100.0 dial.
- Repeatability 3.0 µm, hysteresis 3 µm
- Dial reading ±0.0-100.0
- 8.0 mm stem, M 2.5 x 0.45 mm thread, carbide-tipped contact point
- Measuring force 0.4-2.5 N; weight 137 g
- Specifications
- Features
- Downloads
| Part Number | 2046AB-60 |
| Brand | Mitutoyo |
| Series | 2 |
| Type | Dial Gauge |
| Range | 10 mm (0.394 in) |
| Graduation | 0.01 mm |
| Dial Reading | ±0.0-100.0 |
| Hysteresis | 3 µm |
| Repeatability | 3.0 µm |
| Stem Diameter | 8.0 mm (0.315 in) |
| Back | Flat back |
| Standard | ISO type |
| Contact Point | Carbide tipped |
| Thread | M 2.5 x 0.45 mm |
- Measurement Range: 0 – 10 mm
- Graduation: 0.01 mm for precise reading.
- Back Type: Flat back for flexible and flush mounting
- Series: Part of Mitutoyo’s durable and accurate Series 2
- Standard Compliance: ISO type for international quality assurance
- Use Case: Ideal for precision inspection, alignment, and dimensional measurements
