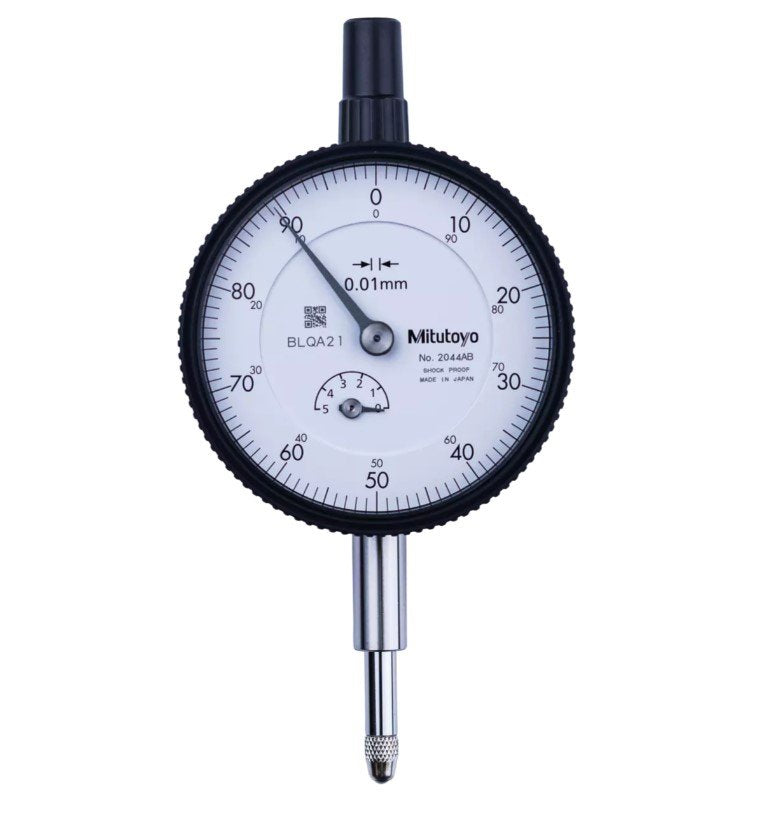

Mitutoyo 2044AB | Dial Gauge | Flat Back | ISO Type | Series 2 | Graduation 0.01 mm | Range 5 mm
The Mitutoyo 2044AB Dial Gauge offers precise and reliable measurements with a graduation of 0.01 mm. Designed with a flat back and ISO Type compliance, it's ideal for a wide range of industrial applications. Part of the trusted Series 2 range, it ensures durability and consistent performance. With a 5 mm measuring range, it's perfect for high-accuracy comparative measurements.
- Specifications
- Features
- Downloads
| Contact point | Carbide tipped, thread: M 2.5 x 0.45 mm |
| Dial Reading | +/-0-100 |
| Digital/Analog | Analog |
| Graduation | 0.01 mm |
| Hysteresis | 3 µm |
| Inch-Metric | Metric |
| Mass (main unit) | 136 g |
| Measuring Force | 0.4 - 1.4 N |
| Measuring range | 12 µm |
| Range | 5 mm |
| Repeatability | 3 µm |
| Series | 2 |
| Stem Dia | 8 mm |
| Type | Dial Gauge |
- High Precision: 0.01 mm graduation for accurate measurement.
- 5 mm Range: Ideal for small displacement comparative measurements.
- Flat Back Design: Easy mounting on stands and fixtures.
- ISO Type Compliance: Meets international standards for quality and reliability.
- Robust Construction: Durable build ensures long-term repeatability and accuracy.
- Series 2 Model: Part of Mitutoyo’s versatile and proven dial gauge lineup.
