Mitutoyo 201-108 Dial Snap Gauge without Indicator 175-200mm
Part No. 201-108 | Range 175–200 mm | Without Indicator
Product Overview

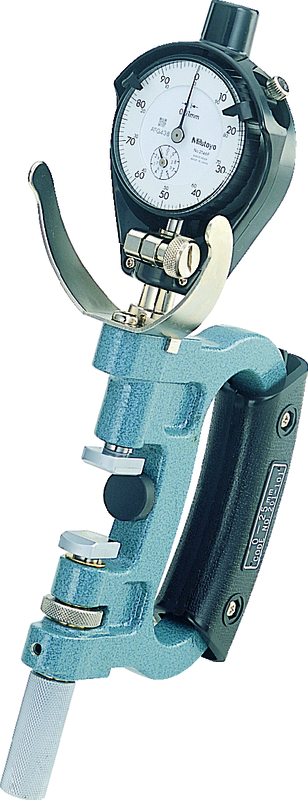

The Mitutoyo 201-108 is a dial snap gauge frame designed for fast, repeatable GO/NG checking of shaft and cylinder diameters from 175–200 mm. It is supplied without an indicator, allowing you to fit a compatible dial or digital indicator according to your measurement requirements.
A dial snap gauge simplifies repeated dimensional inspection by allowing the gauge to be set to the nominal size before production checking begins. Each shaft or cylindrical workpiece can then be positioned between the anvils and checked from the indicator reading, making the 201-108 suitable for in-process inspection on machining and production lines.
The gauge features wide, flat carbide anvils for stable, durable contact with the workpiece. Its 2 mm anvil retracting stroke helps make loading and unloading parts easier. The measuring range can be adjusted using the adjustment nut, allowing the gauge to be set to the required inspection dimension.
The 201-108 is part of the Mitutoyo dial snap gauge range. For adjacent metric sizes, the 201-107 covers 150–175 mm and the 201-109 covers 200–225 mm.
Key Benefits
■ Fast GO/NG checking of shaft and cylinder diameters from 175–200 mm
■ Wide, flat carbide anvils for stable and wear-resistant contact
■ 2 mm anvil retracting stroke for convenient workpiece loading and removal
■ Adjustable measuring range using the adjustment nut
■ Supplied without an indicator for compatibility with a suitable dial or digital indicator
■ Suitable for repeated in-process inspection and production quality control
■ Genuine Mitutoyo 201-108 supplied by General Tech Services LLC in Saudi Arabia
Who This Product Is Best For
■ Production lines performing repeated GO/NG checks on turned and ground shafts
■ Quality inspectors checking batches of cylindrical components
■ Machine shops that already have a compatible dial or digital indicator
■ Workshops regularly inspecting diameters within the 175–200 mm range
■ Users requiring a Mitutoyo snap gauge frame without a supplied indicator
How to Use It
-
Fit a suitable compatible dial or digital indicator to the gauge frame.
-
Use the adjustment nut to set the anvils to the nominal dimension using an appropriate master or reference.
-
Zero the indicator against the reference and establish the required tolerance limits.
-
Position each workpiece between the wide, flat anvils.
-
Read the indicator and determine whether the measured part is within the required GO/NG limits.
Frequently Asked Questions
What is the Mitutoyo 201-108 used for?
The Mitutoyo 201-108 is used for fast, repeatable GO/NG checking of shaft and cylinder diameters from 175–200 mm, particularly during production and in-process inspection.
Does the 201-108 come with an indicator?
No. The 201-108 is supplied without an indicator, allowing you to fit a compatible dial or digital indicator suited to your application.
What range does the 201-108 cover?
The Mitutoyo 201-108 covers a 175–200 mm diameter range. The measuring range can be adjusted using the adjustment nut.
What are the benefits of the carbide anvils?
The wide, flat carbide anvils provide durable contact with the workpiece and are suitable for repeated dimensional checking in production environments.
What is the anvil retracting stroke?
The Mitutoyo 201-108 has a 2 mm anvil retracting stroke, helping make workpiece loading and unloading more convenient.
Which Mitutoyo snap gauge size should I choose?
Choose the model whose measuring range covers your required part diameter. The 201-108 covers 175–200 mm, while the 201-107 covers 150–175 mm and the 201-109 covers 200–225 mm.
Is the genuine Mitutoyo 201-108 available in Saudi Arabia?
General Tech Services LLC supplies genuine Mitutoyo products in Saudi Arabia. Contact the team for current availability and pricing.
Request Pricing and Availability
For genuine Mitutoyo 201-108 dial snap gauges in Saudi Arabia, contact General Tech Services LLC for pricing, availability and supply information.
