Mitutoyo 186-902 | Radius Gauge Set | 0.5-13 mm, 26 Leaves

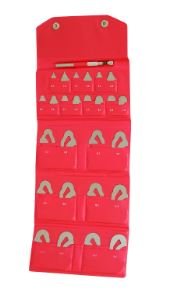

The Mitutoyo 186-902 radius gauge set spans 0.5 to 13 mm in 0.5 mm steps across 26 leaves, for checking internal and external radii on parts. Each leaf is stamped with its size and carries both an internal and an external gauge.
- 26 leaves, 0.5 to 13 mm in 0.5 mm increments
- Internal and external radius gauge of the same size on every leaf
- Five measuring locations per gauge
- 90° arc type
- Locking clamp holds the leaves
- Specifications
- Features
- Downloads
| Part Number | 186-902 |
| Brand | Mitutoyo |
| Type | 90° arc |
| Range | 0.5 - 13 mm |
| Measuring Locations | 5 per gauge |
| Number of Leaves | 26 (0.5 mm steps) |
| Leaf Design | Internal and external radius per leaf |
| Size Marking | Stamped on each leaf |
| Clamp | Locking clamp |
- Radius size is stamped on each gage leaf.
- Each leaf comprises an internal and an external radius gage of the same size.
- With locking clamp.
Each gage has five measuring locations.
