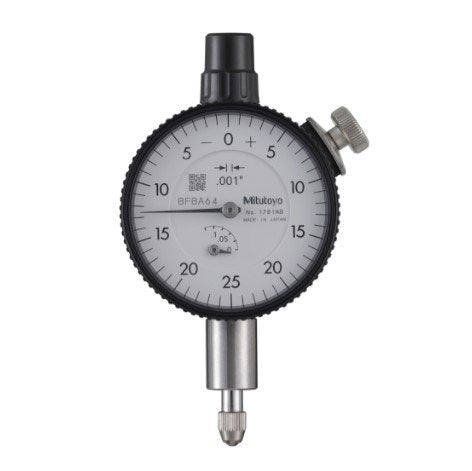

Mitutoyo 1781AB | Dial Gauge | 0.125 in Range, 0.001 in Graduation, Flat Back
With 0.001 in graduations over a 0.125 in range, the Mitutoyo 1781AB is a dial gauge. The 1781AB has flat-back construction for flush mounting on a fixture, follows the ANSI/AGD type layout and belongs to Series 1. The 1781AB reads in inch units on a 0-25-0 dial.
- Repeatability ±0.0002 in, hysteresis 0.0002 in
- Dial reading 0-25-0
- 9.52 mm (0.375 in) stem, 4-48UNF thread, carbide-tipped contact point
- Measuring force 0.4-1.4 N; weight 70 g
- Specifications
- Features
- Downloads
| Part Number | 1781AB |
| Brand | Mitutoyo |
| Series | 1 |
| Type | Dial Gauge |
| Range | 0.125 in |
| Graduation | 0.001 in |
| Dial Reading | 0-25-0 |
| Hysteresis | 0.0002 in |
| Repeatability | ±0.0002 in |
| Stem Diameter | 9.52 mm (0.375 in) |
| Back | Flat back |
| Standard | ANSI/AGD type |
| Contact Point | Carbide tipped |
| Thread | 4-48UNF |
- High Precision: 0.001 inch graduation for accurate and detailed measurements.
- Flat Back Design: Facilitates easy and secure mounting on various fixtures and stands.
- ANSI/AGD Type Compliance: Ensures standardization and compatibility across setups.
- Compact Size: Ideal for use in applications where space is limited.
- Plain Bearing: Provides smooth, consistent pointer movement and durability over time.
- Works Test Certificate: Delivered with a certificate of inspection for quality assurance.
