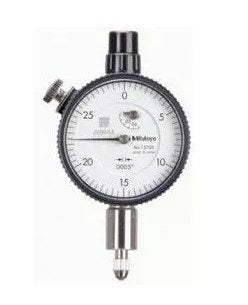

Mitutoyo 1570F-10 | Dial Indicator | 0.075 in Range, 0.0005 in Graduation, ±0.0005 in Accuracy
Mitutoyo's 1570F-10 dial indicator reads in 0.0005 in steps across a 0.075 in range, with ±0.0005 in accuracy. Measuring force on the 1570F-10 is 1.4 N or less. The 1570F-10 has a 40 mm bezel. Repeatability of ±0.0002 in and hysteresis of 0.00033 in are listed for the 1570F-10.
- Accuracy ±0.0005 in, repeatability ±0.0002 in
- Hysteresis 0.00033 in
- Dial reading 0-30, 40 mm bezel
- 9.52 mm (3/8 in) stem
- Measuring force 1.4 N or less
- Specifications
- Features
- Downloads
| Part Number | 1570F-10 |
| Brand | Mitutoyo |
| Type | Dial Indicator |
| Range | 0.075 in |
| Graduation | 0.0005 in |
| Dial Reading | 0-30 |
| Measuring Force | 1.4 N or less |
| Hysteresis | 0.00033 in |
| Repeatability | ±0.0002 in |
| Stem Diameter | 9.52 mm (3/8 in) |
| Accuracy | ±0.0005 in |
| Dial/Bezel Size | 40 mm bezel |
- Measuring Range: 0.075 inches, ideal for precise measurements in small increments.
- High Resolution: 0.0001-inch resolution for extremely fine measurement readings.
- Graduation: 0.0005 inches, offering clear and easy-to-read graduations.
- Durability: Designed for long-lasting accuracy and reliable performance in various industrial settings.
- Accuracy: Provides high-precision measurements for applications like quality control, inspection, and mechanical testing.
- Robust Construction: Built for consistent performance in challenging environments.
