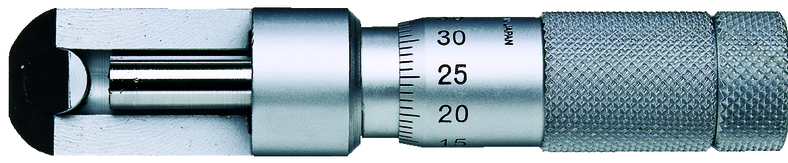

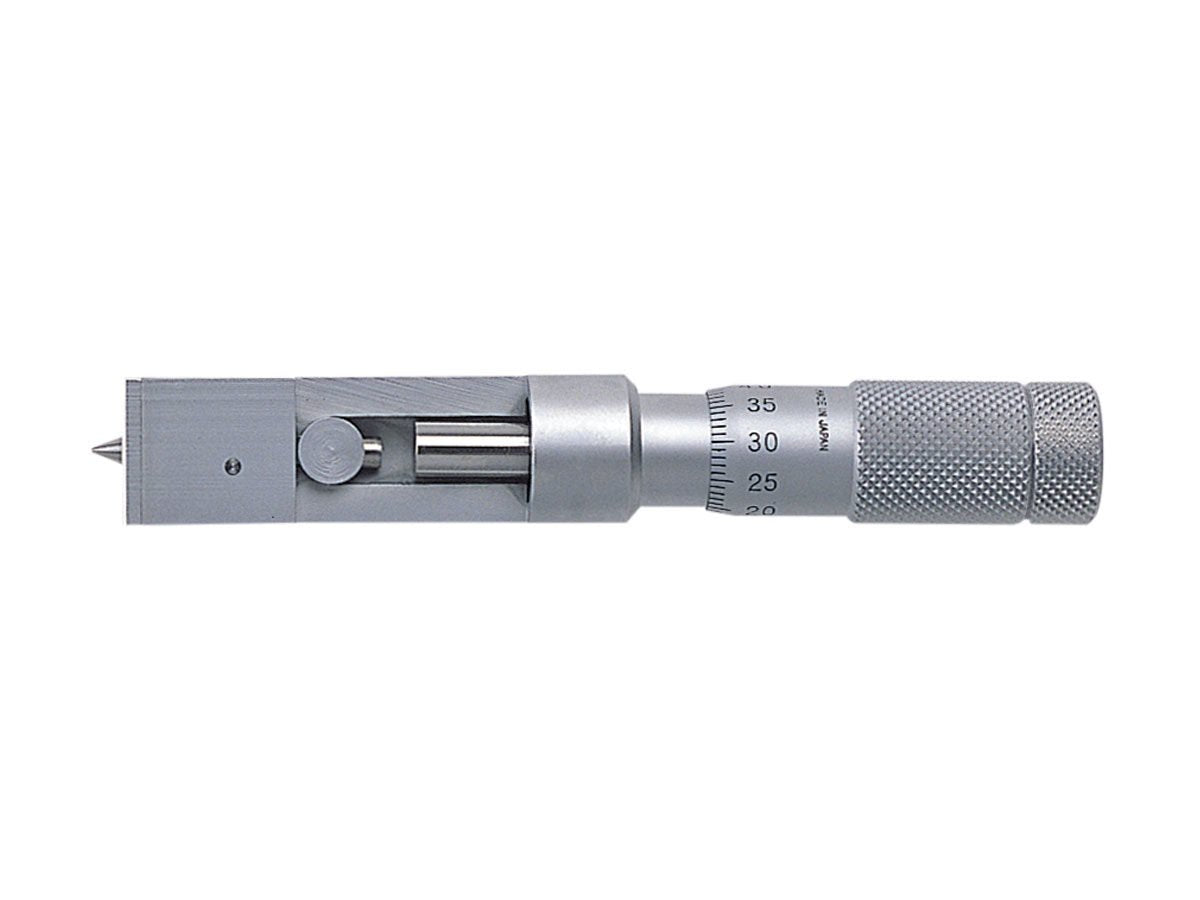

Mitutoyo 147-106 Can Seam Micrometer 0-0.5"
Part No. 147-106 | Range 0–0.5" (0–12.7 mm) | Graduation 0.001" | Accuracy Not specified
Product Overview
The Mitutoyo 147-106 can seam micrometer is designed for measuring the width, height and depth of can seams across a 0–0.5" (0–12.7 mm) range. Its analog, inch-graduated design provides 0.001" graduation for checking seam dimensions during production, quality control and packaging inspection.
The instrument uses a Ø5 mm measuring spindle with a 0.5 mm spindle pitch. Its thimble and sleeve feature a satin chrome finish with a Ø13 mm scale for clear analog reading. With a main-unit mass of approximately 65 g, the 147-106 is lightweight for repeated line-side measurements.
Mitutoyo can seam micrometers are available for different can types, including steel, aluminium and spray cans. The supplied information does not identify a specific can type for the 147-106, so the applicable can type should be confirmed before ordering.
One specification difference noted in the supplied data is the spindle pitch: the 147-106 is listed with a 0.5 mm spindle pitch, while the inch-graduated 147-104 is listed with a 0.635 mm spindle pitch.

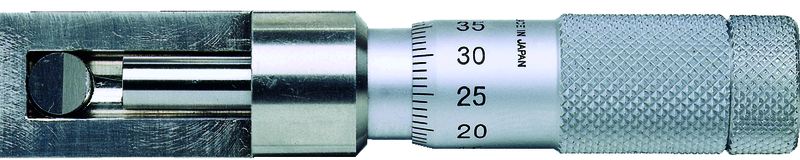

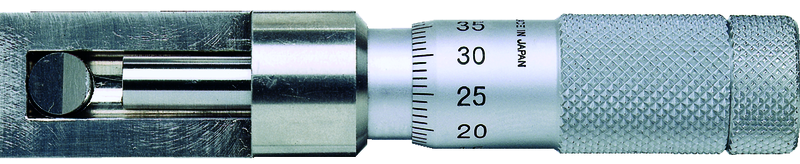

For the metric alternative, see the Mitutoyo 147-105 Can Seam Micrometer, 0–13 mm.
Key Benefits
-
Measures can seam width, height and depth with one dedicated inspection tool.
-
0–0.5" measuring range for inch-based can seam inspection.
-
0.001" graduation supports detailed seam comparisons.
-
Ø5 mm measuring spindle with 0.5 mm spindle pitch.
-
Satin chrome thimble and sleeve provide a clear analog scale.
-
Lightweight 65 g main unit is convenient for repeated line-side checks.
-
Suitable for can seam inspection applications where the applicable can type has been confirmed.
-
Supplied with a box and key for storage and protection.
For pricing and availability, call +966 569 289 544 for a quote.
Who This Product Is Best For
The Mitutoyo 147-106 is suitable for quality-control teams inspecting can seams on production lines, packaging operations, maintenance teams checking seamer setup and wear, and metrology or incoming-inspection departments.
It is useful where seam width, height and depth need to be checked against established production specifications using an inch-graduated analog instrument.
Before ordering, confirm the can type and application with the supplier because Mitutoyo's can seam micrometer range includes models intended for different can constructions.
How to Use
-
Clean the can seam and measuring spindle to prevent dirt or debris from affecting the reading.
-
Position the micrometer at the seam area being inspected.
-
Turn the thimble until the measuring spindle makes appropriate contact with the seam.
-
Read the value from the sleeve and thimble scale.
-
Record the measurement and compare it with the applicable seam specification.
-
Repeat the measurement at the required inspection points to assess seam consistency.
Frequently Asked Questions
What does the Mitutoyo 147-106 measure?
The 147-106 is a can seam micrometer for checking the width, height and depth of can seams.
What is the range of the 147-106?
The measuring range is 0–0.5" (0–12.7 mm) with 0.001" graduation.
Is the 147-106 metric or inch-graduated?
The 147-106 is an inch-graduated model and provides readings in inches.
What type of measuring spindle does it use?
The instrument has a Ø5 mm measuring spindle with a 0.5 mm spindle pitch.
Which can types are covered by Mitutoyo can seam micrometers?
The supplied information identifies three can-type applications within the range: steel, aluminium and spray cans. The specific can type applicable to the 147-106 should be confirmed before ordering.
What is the difference between the 147-106 and 147-105?
The 147-106 is the inch-graduated model with a 0–0.5" range and 0.001" graduation. The 147-105 is the metric 0–13 mm model with 0.01 mm graduation.
How does the 147-106 differ from the 147-104?
The supplied specifications list the 147-106 with a 0.5 mm spindle pitch, while the 147-104 is listed with a 0.635 mm spindle pitch. Confirm the required model against the application before ordering.
How much does the Mitutoyo 147-106 cost?
Pricing is available on request. Contact General Tech Services at +966 569 289 544 for current pricing and availability.
Request a Quote
Need an inch-graduated instrument for can seam inspection? Contact General Tech Services in Dammam, Saudi Arabia, at +966 569 289 544 or mathews@generaltechsaudi.com for pricing and availability of the Mitutoyo 147-106.
