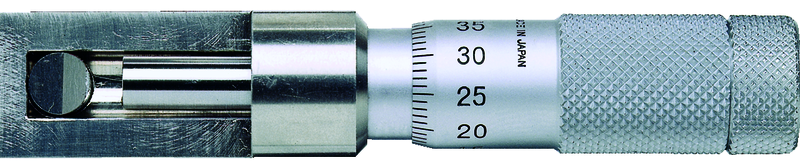

Mitutoyo 147-105 Can Seam Micrometer 0-13mm
Part No. 147-105 | Range 0–13 mm | Graduation 0.01 mm | Accuracy Not specified
Product Overview
The Mitutoyo 147-105 can seam micrometer measures the width, height and depth of can seams across a 0–13 mm range. This analog, metric instrument provides 0.01 mm graduation for detailed seam inspection and is supplied with a box and key for storage.
The 147-105 has a Ø5 mm measuring spindle with a 0.5 mm spindle pitch. Its thimble and sleeve feature a satin chrome finish with a Ø13 mm scale, providing a clear analog reading during inspection. With a main-unit mass of only 65 g, the micrometer is suitable for repeated line-side or inspection-room measurements.
Mitutoyo's can seam micrometer range covers applications involving steel, aluminium and spray cans. The appropriate model should be selected according to the can type and required measuring unit.

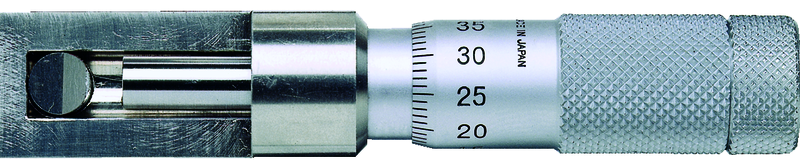

For an inch-graduated alternative, see the Mitutoyo 147-106 Can Seam Micrometer with a 0–0.5" range and 0.001" graduation.
Key Benefits
-
Measures can seam width, height and depth with one instrument.
-
Provides 0.01 mm graduation for detailed seam comparisons.
-
Lightweight 65 g main unit supports repeated inspection work.
-
Satin chrome thimble and sleeve provide a clear, readable scale.
-
Ø5 mm measuring spindle with 0.5 mm spindle pitch.
-
Supplied with a box and key for storage and handling.
-
Metric 0–13 mm range suits can-seam inspection applications.
For pricing and availability, call +966 569 289 544 for a quote on the Mitutoyo 147-105.
Who This Product Is Best For
The Mitutoyo 147-105 is suitable for:
-
Quality control teams inspecting can seams on production lines.
-
Packaging plants requiring repeatable seam measurements.
-
Maintenance teams checking seamer setup and wear.
-
Metrology and dimensional inspection departments.
-
Incoming inspection teams checking packaged or filled containers.
How to Use
-
Clean the can seam and measuring spindle to prevent dirt from affecting the measurement.
-
Position the micrometer on the seam area to be inspected.
-
Turn the thimble until the measuring spindle makes appropriate contact with the seam.
-
Read the value from the sleeve and thimble scale.
-
Record the measurement and compare it with the applicable can-seam specification.
Frequently Asked Questions
What does the Mitutoyo 147-105 measure?
It measures the width, height and depth of can seams. It is an analog can seam micrometer intended for checking seam dimensions.
What is the range and graduation of the 147-105?
The measuring range is 0–13 mm, with a graduation of 0.01 mm. The measuring spindle is Ø5 mm with a 0.5 mm spindle pitch.
Is the 147-105 a metric or inch micrometer?
The 147-105 is a metric micrometer, with measurements displayed in millimetres.
Which can types can the Mitutoyo can seam micrometer range cover?
The Mitutoyo can seam micrometer range is available for steel, aluminium and spray-can applications. Confirm the appropriate part number for your specific can type before ordering.
What is the difference between the 147-105 and 147-106?
The 147-105 is the metric model with a 0–13 mm range and 0.01 mm graduation. The 147-106 is the inch-graduated model with a 0–0.5" range and 0.001" graduation.
How much does the Mitutoyo 147-105 cost?
Pricing is available on request. Call +966 569 289 544 or use the quote form on the product page to request current pricing and availability.
