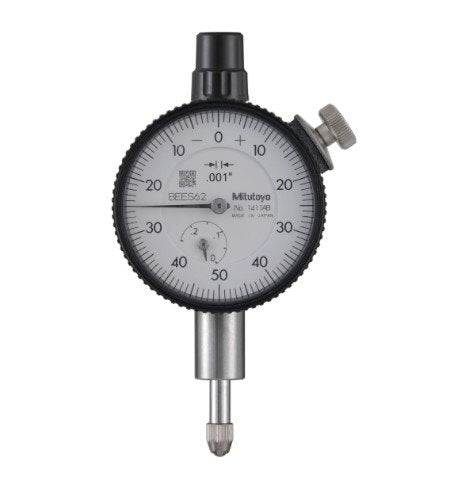

Mitutoyo 1411AB | Dial Gauge | 0.25 in Range, 0.001 in Graduation, Flat Back
Mitutoyo's 1411AB dial gauge reads in 0.001 in steps across a 0.25 in range. The 1411AB has a flat back for flush mounting, follows the ANSI/AGD type layout and belongs to Series 1. Listed weight for the 1411AB is 70 g. The 1411AB mounts by a 9.52 mm (0.375 in) stem, and its contact point thread is 4-48UNF.
- Repeatability ±0.0002 in, hysteresis 0.0002 in
- Dial reading 0-50-0
- 9.52 mm (0.375 in) stem, 4-48UNF thread, carbide-tipped contact point
- Jewelled bearing
- Measuring force 0.4-1.4 N; weight 70 g
- Specifications
- Features
- Downloads
| Part Number | 1411AB |
| Brand | Mitutoyo |
| Series | 1 |
| Type | Dial Gauge |
| Range | 0.25 in |
| Graduation | 0.001 in |
| Dial Reading | 0-50-0 |
| Hysteresis | 0.0002 in |
| Repeatability | ±0.0002 in |
| Stem Diameter | 9.52 mm (0.375 in) |
| Back | Flat back |
| Standard | ANSI/AGD type |
| Contact Point | Carbide tipped |
| Thread | 4-48UNF |
- 0.001 Inch Graduation: Provides high accuracy for detailed and precise measurements.
- Flat Back Design: Ideal for easy and secure mounting on various fixtures and stands.
- 0.25 Inch Range: Suitable for measuring small to moderate displacements in precision tasks.
- Series 1 Construction: Compact and lightweight, perfect for space-constrained applications.
- ANSI/AGD Compliant: Meets industry standards for compatibility and interchangeability.
- Jewelled Bearing: Ensures smooth, consistent pointer movement and durability over time.
