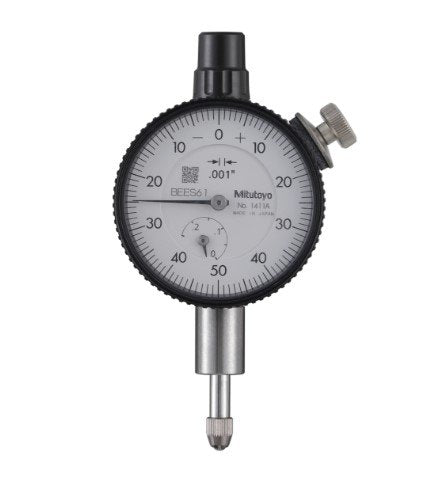

Mitutoyo 1411A | Dial Gauge | 0.25 in Range, 0.001 in Graduation, Lug Back
The Mitutoyo 1411A is a dial gauge with a 0.25 in range and 0.001 in graduation. The 1411A has a lug back for secure attachment to a stand or fixture, follows the ANSI/AGD type layout and belongs to Series 1. The 1411A reads in inch units on a 0-50-0 dial.
- Repeatability ±0.0002 in, hysteresis 0.0002 in
- Dial reading 0-50-0
- 9.52 mm (0.375 in) stem, 4-48UNF thread, carbide-tipped contact point
- Jewelled bearing
- Measuring force 0.4-1.4 N; weight 90 g
- Specifications
- Features
- Downloads
| Part Number | 1411A |
| Brand | Mitutoyo |
| Series | 1 |
| Type | Dial Gauge |
| Range | 0.25 in |
| Graduation | 0.001 in |
| Dial Reading | 0-50-0 |
| Hysteresis | 0.0002 in |
| Repeatability | ±0.0002 in |
| Stem Diameter | 9.52 mm (0.375 in) |
| Back | Lug back |
| Standard | ANSI/AGD type |
| Contact Point | Carbide tipped |
| Thread | 4-48UNF |
- 0.001 Inch Graduation: Provides accurate and easy-to-read measurements for precision work.
- Lug Back Design: Allows secure attachment to indicator holders and mounting fixtures.
- 0.25 Inch Range: Suitable for general inspection and mechanical measurement tasks.
- Series 1 Design: Compact and lightweight, ideal for tight or limited-space setups.
- ANSI/AGD Compliant: Ensures industry-standard compatibility and reliability.
- Jewelled Bearing: Offers smooth pointer movement and long-lasting durability.
