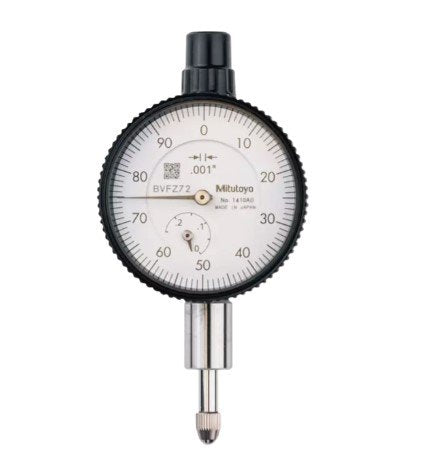

Mitutoyo 1410AB | Dial Gauge | 0.25 in Range, 0.001 in Graduation, Flat Back
Mitutoyo's 1410AB dial gauge reads in 0.001 in steps across a 0.25 in range. The 1410AB has flat-back construction for flush mounting on a fixture, follows the ANSI/AGD type layout and belongs to Series 1. The 1410AB reads in inch units on a 0-100 dial.
- Repeatability ±0.0002 in, hysteresis 0.0002 in
- Dial reading 0-100
- 9.52 mm (0.375 in) stem, 4-48UNF thread, carbide-tipped contact point
- Jewelled bearing
- Measuring force 0.4-1.4 N; weight 70 g
- Specifications
- Features
- Downloads
| Part Number | 1410AB |
| Brand | Mitutoyo |
| Series | 1 |
| Type | Dial Gauge |
| Range | 0.25 in |
| Graduation | 0.001 in |
| Dial Reading | 0-100 |
| Hysteresis | 0.0002 in |
| Repeatability | ±0.0002 in |
| Stem Diameter | 9.52 mm (0.375 in) |
| Back | Flat back |
| Standard | ANSI/AGD type |
| Contact Point | Carbide tipped |
| Thread | 4-48UNF |
- Precise Measurement: 0.001 inch graduation for accurate and detailed readings.
- Flat Back Design: Enables easy and secure mounting on flat surfaces or stands.
- Standardized Build: Complies with ANSI/AGD Type for industry compatibility.
- Series 1 Construction: Compact and lightweight, perfect for limited space setups.
- 0.25 Inch Measuring Range: Suitable for applications requiring moderate displacement measurement.
- Durable Mechanism: Built with high-quality components for long-lasting performance.
