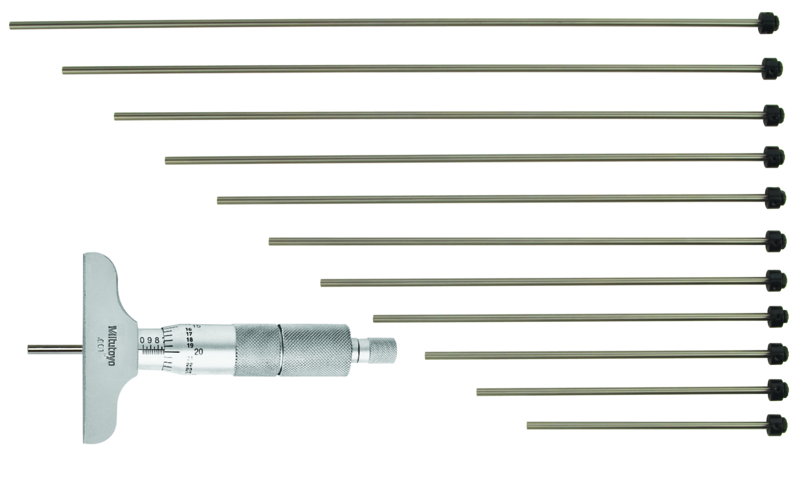

Mitutoyo 129-149 Depth Micrometer, Interchangeable Rods 0-12", 2.5" Base
Part No. 129-149 | Range 0–12" | Graduation 0.001" | Base Size 2.5" | 12 Rods Included
Product Overview
The Mitutoyo 129-149 depth micrometer uses Ø4 mm interchangeable rods to measure depths across a 0–12" range with a 2.5" base. A ratchet stop helps provide consistent measuring force, while the rod lock secures the selected rod position. The 0.001" graduation supports detailed analog depth measurement, and the instrument is supplied with a box and key.
The hardened tool steel base provides a stable reference surface for measuring slots, steps, shoulders and blind holes. The 2.5" (63.5 mm) base is suited to narrower features and tighter spaces where a larger base may be less convenient.
The interchangeable rods have hardened, precision-ground measuring surfaces with a micro-lap finish. Published specifications include 0.3 µm flatness for the rod measuring face, ±3 µm micrometer head feed over the 0–25 mm travel, and ±4 µm rod zero point error over 0–150 mm.
The 129-149 includes 12 rods and has a main-unit mass of 600 g. For the larger reference surface option, see the Mitutoyo 129-150 depth micrometer with a 4" base.
Key Benefits
-
Interchangeable Ø4 mm rods cover the full 0–12" measuring range.
-
2.5" (63.5 mm) hardened tool steel base suits narrower measuring locations.
-
0.001" graduation provides detailed analog readings.
-
Ratchet stop helps maintain consistent measuring force.
-
Rod lock secures the selected rod position during measurement.
-
Hardened, precision-ground, micro-lap measuring surfaces support regular inspection work.
-
12 interchangeable rods provide flexibility across different depth requirements.
-
Supplied with a box and key for storage and handling.
Who This Product Is Best For
-
Toolrooms and machine shops measuring depths on machined components.
-
Quality control teams checking slots, steps, shoulders and blind holes.
-
Metrology and inspection teams requiring a mechanical depth reference.
-
Maintenance personnel measuring wear or recess depth on components.
-
Users who need a 0–12" interchangeable-rod depth micrometer with a narrower 2.5" base.
How to Use
-
Select the rod appropriate for the required measuring depth and fit it to the micrometer head. Secure it with the rod lock.
-
Place the base flat against the reference surface and position it across the feature being measured.
-
Turn the thimble using the ratchet stop until the measuring rod contacts the bottom of the feature.
-
Read the measurement from the sleeve and thimble scale and record the result.
-
For repeat measurements, maintain the same seating position and measuring technique to improve consistency.
Frequently Asked Questions
What does the Mitutoyo 129-149 measure?
The 129-149 is an analog depth micrometer for measuring depths in features such as slots, steps, shoulders and blind holes.
What is the range and graduation of the 129-149?
The measuring range is 0–12", with a 0.001" graduation and a 25 mm measuring span.
What is the difference between the 129-149 and 129-150?
Both models have a 0–12" range and 0.001" graduation. The main difference is the base size: the 129-149 has a 2.5" (63.5 mm) base, while the 129-150 has a 4" (101.6 mm) base.
How many rods come with the 129-149?
The 129-149 is supplied with 12 interchangeable rods.
Is the 129-149 a metric or inch tool?
It is an inch-based tool with a 0.001" graduation. Its published specifications also use metric dimensions for certain mechanical characteristics.
How much does the 129-149 cost?
Pricing is available on request. Call +966 569 289 544 or use the quote form to request current pricing and availability.
