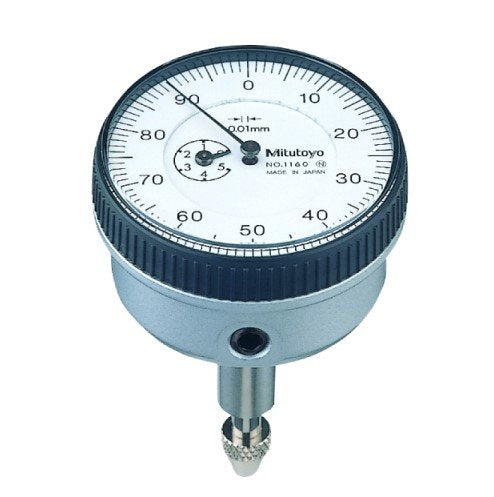

Mitutoyo 1160A | Back Plunger Dial Gauge | 5 mm Range, 0.01 mm Graduation, ±0.018 mm Accuracy
With 0.01 mm graduations over a 5 mm range and ±0.018 mm accuracy, the Mitutoyo 1160A is a back plunger dial gauge. The 1160A has a back-plunger design for mounting and access in confined spaces, follows the ISO type layout and belongs to Series 1.
- Accuracy ±0.018 mm, repeatability 3 µm
- Hysteresis 4 µm
- Dial reading ±0-100
- 8 mm stem, M 2.5 x 0.45 mm thread, carbide-tipped contact point
- Measuring force 0.4-1.4 N; weight 80 g
- Specifications
- Features
- Downloads
| Part Number | 1160A |
| Brand | Mitutoyo |
| Series | 1 |
| Type | Back Plunger Dial Gauge |
| Range | 5 mm (0.197 in) |
| Graduation | 0.01 mm |
| Dial Reading | ±0-100 |
| Hysteresis | 4 µm |
| Repeatability | 3 µm |
| Stem Diameter | 8 mm (0.315 in) |
| Standard | ISO type |
| Contact Point | Carbide tipped |
| Thread | M 2.5 x 0.45 mm |
| Accuracy | ±0.018 mm |
- Graduation of 0.01mm: Provides precise measurement increments for accuracy.
- Accuracy of ± 0.018mm: Ensures reliable and consistent measurements.
- Back Plunger Design: Ideal for use in confined spaces and hard-to-reach areas.
- Measurement Range of 5mm: Suitable for small, detailed measurements.
- ISO Type: Complies with international standards for quality and performance.
- Durable Construction: Built for long-lasting reliability and consistent use in various industries.
