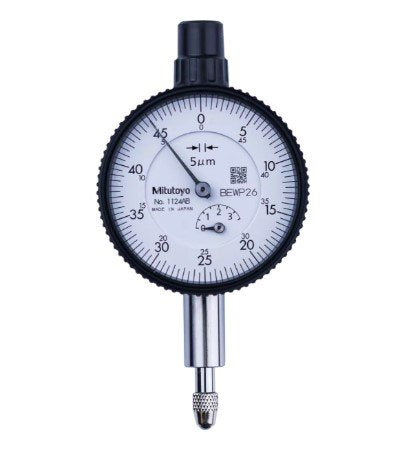

Mitutoyo 1124AB | Dial Gauge | 3.5 mm Range, 0.005 mm Graduation, Flat Back
This Mitutoyo dial gauge, part number 1124AB, covers 3.5 mm at 0.005 mm graduation. The 1124AB has a flat back for flush mounting, follows the ISO type layout and belongs to Series 1. The 1124AB reads in metric units on a ±0-50 dial.
- Repeatability 3 µm, hysteresis 3 µm
- Dial reading ±0-50
- 8 mm stem, M 2.5 x 0.45 mm thread, carbide-tipped contact point
- Measuring force 0.4-1.4 N; weight 70 g
- Specifications
- Features
- Downloads
| Part Number | 1124AB |
| Brand | Mitutoyo |
| Series | 1 |
| Type | Dial Gauge |
| Range | 3.5 mm (0.138 in) |
| Graduation | 0.005 mm |
| Dial Reading | ±0-50 |
| Hysteresis | 3 µm |
| Repeatability | 3 µm |
| Stem Diameter | 8 mm (0.315 in) |
| Back | Flat back |
| Standard | ISO type |
| Contact Point | Carbide tipped |
| Thread | M 2.5 x 0.45 mm |
- Measuring Range: 3.5 mm for accurate, mid-range measurement tasks
- Graduation: 0.005 mm for fine-resolution readings
- Mounting: Flat back for stable, flush mounting on fixtures
- Standards: ISO type build for international measurement compatibility
- Design: Robust construction for repeat use in industrial settings
- Series: Part of Mitutoyo’s trusted Series 1 precision instruments
