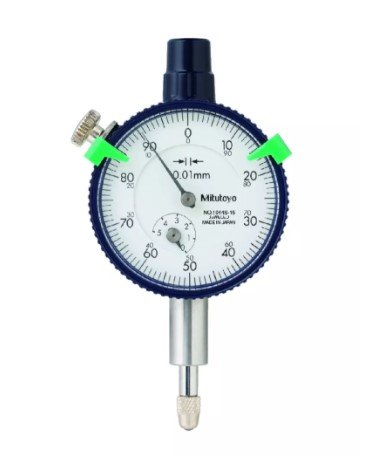

Mitutoyo 1044SB-15 | Dial Indicator | 5 mm, 0.01 mm, flat back, jewelled
The Mitutoyo 1044SB-15 is a Series 1 flat-back dial indicator with a 5 mm range and 0.01 mm graduation. A jewelled bearing gives smooth pointer movement for general-purpose inspection.
- Jewelled bearing on the 1044SB-15
- 5 mm range, 0.01 mm graduation (1044SB-15)
- Repeatability 3 µm, hysteresis 3 µm (1044SB-15)
- Flat back, carbide-tipped contact point
- 8 mm stem, M2.5 x 0.45 mm thread, 70 g (1044SB-15)
- Specifications
- Features
- Downloads
| Part Number | 1044SB-15 |
| Brand | Mitutoyo |
| Type | Dial Indicator, ISO type |
| Range | 5 mm (0.197 in) |
| Graduation | 0.01 mm |
| Hysteresis | 3 µm |
| Repeatability | 3 µm |
| Back | Flat back |
| Contact Point | Carbide tipped |
| Bearing | Jewelled |
| Weight | 70 g |
| Stem / Thread | 8 mm, M2.5 x 0.45 mm |
- Measuring Range: 5 mm for a wide range of measurement tasks
- Graduation: 0.01 mm for easy-to-read, precise readings
- Bearing Type: Jeweled bearing for smooth and durable operation
- Mounting: Flat back for stable and flush surface installation
- Series: Part of Mitutoyo Series 1, known for reliability and precision
- Design: Rugged build ideal for workshop and QC environments
