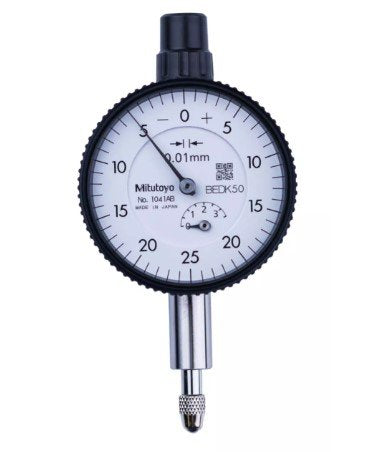

Mitutoyo 1041AB | Dial Gauge | 3.5 mm, 0.01 mm, flat back
Mitutoyo's 1041AB is a flat-back Series 1 dial gauge to ISO type, with a 3.5 mm range, 0.01 mm graduation and a balanced 0-25-0 dial for everyday inspection.
- 1041AB flat back for flush mounting on surfaces and fixtures
- 0-25-0 balanced dial, 0.01 mm graduation
- Repeatability 3 µm, hysteresis 3 µm (1041AB)
- Carbide-tipped contact point, 0.4-1.4 N force (1041AB)
- 8 mm stem, M2.5 x 0.45 mm thread, 70 g (1041AB)
- Specifications
- Features
- Downloads
| Part Number | 1041AB |
| Brand | Mitutoyo |
| Series | 1 |
| Type | Dial Gauge, EN ISO |
| Range | 3.5 mm (0.138 in) |
| Graduation | 0.01 mm |
| Dial Reading | 0-25-0 |
| Measuring Force | 0.4-1.4 N |
| Hysteresis | 3 µm |
| Repeatability | 3 µm |
| Back | Flat back |
| Contact Point | Carbide tipped |
| Weight | 70 g |
| Stem / Thread | 8 mm, M2.5 x 0.45 mm |
- Measuring Range: 3.5 mm for general precision measurement tasks
- Graduation: 0.01 mm for clear and accurate readings
- Mounting: Flat back for stable, flush fixture installation
- Standards: ISO type construction for international use
- Design: Rugged and user-friendly for daily shop floor use
- Series: Part of Series 1, trusted for accuracy and durability
