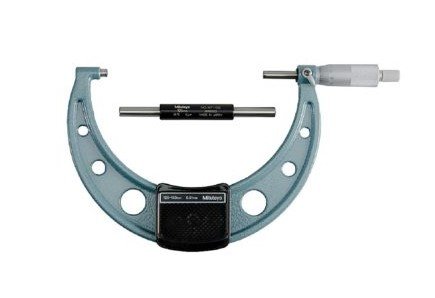

Mitutoyo 103-142-10H | Outside Micrometer | Series 103 | Graduation 0.01mm | Accuracy ±3 µm | Range 125 to 150mm
The Mitutoyo 103-142-10H Outside Micrometer offers exceptional precision with a graduation of 0.01mm. It features an accuracy of ±3 µm, ensuring highly reliable measurements. With a measurement range of 125mm to 150mm, it's perfect for medium-sized parts and components. The micrometer's hardened steel anvil and spindle provide durability for long-term use. Its ergonomic design ensures comfort and accuracy during operation. Ideal for use in precision measurement applications in automotive, manufacturing, and engineering fields.

Free UAE shipping available
- Specifications
- Features
- Downloads
Accuracy | +/-3 µm |
Digital/Analog | Analog |
Flatness | 0.6 µm |
Graduation | 0.01 mm |
Inch-Metric | Metric |
Measuring Force | 5 - 10 N |
Parallelism | 3 µm |
Range | 125-150 mm |
Scale | Thimble and sleeve satin chrome finish, ƒ ̧18 mm |
Spindle pitch | 0.5 mm |
Spindle thread | With spindle lock, ƒ ̧6,35 mm (¢°¤300 mm) ƒ ̧ 8 mm (>300 mm) |
Type | Outside Micrometer |
Weight | 665 g |
- For durability, the frame is finished with baked enamel in a hammer tone.
- The scale is laser-etched onto the sleeve and thimble.
- The spindle and anvil's carbide facing prevents wear, keeping surfaces flat for longer periods of time.
- There is always a speeder available to rotate the spindle quickly.
- Comes in a fitted plastic box and has a standard bar with the exception of 0–25mm.s
