Mark-10 PTA | Plug & Test Adapter | For M7I, M5I & M3I Indicators
Part Number : PTA

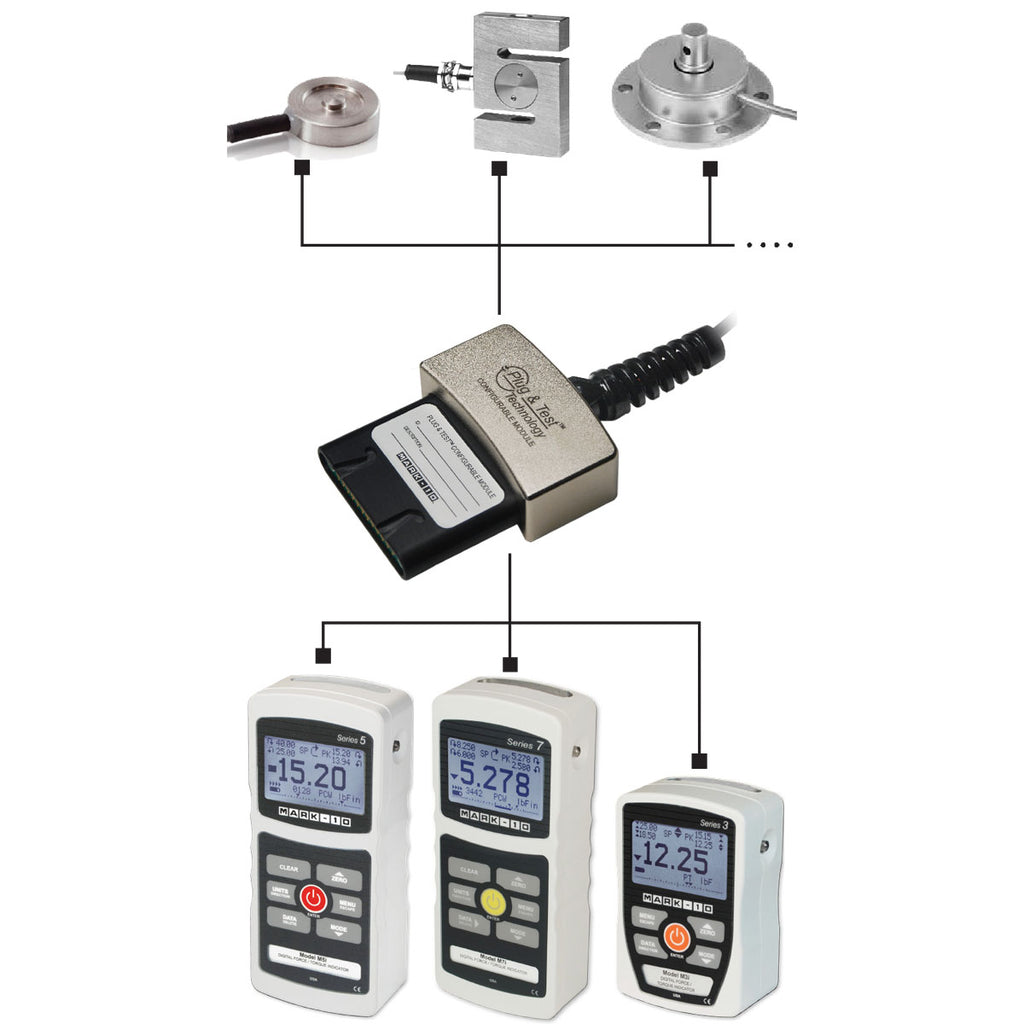

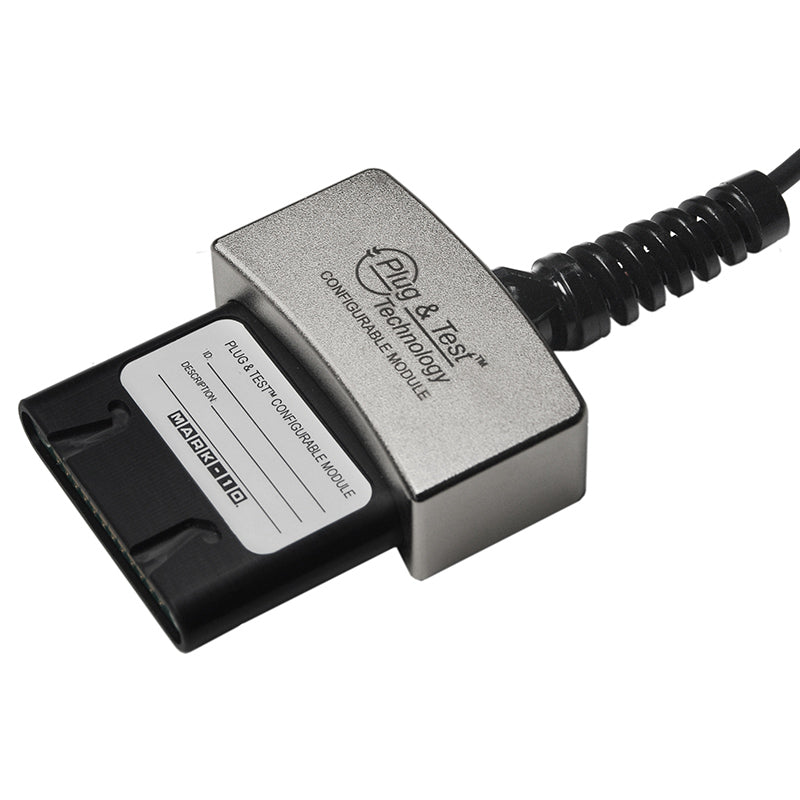

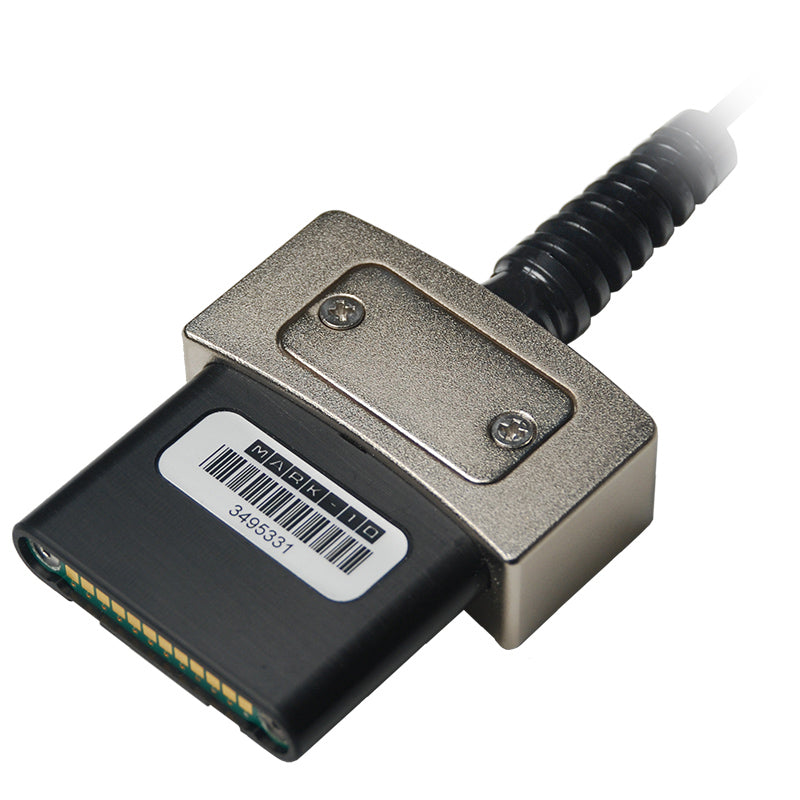

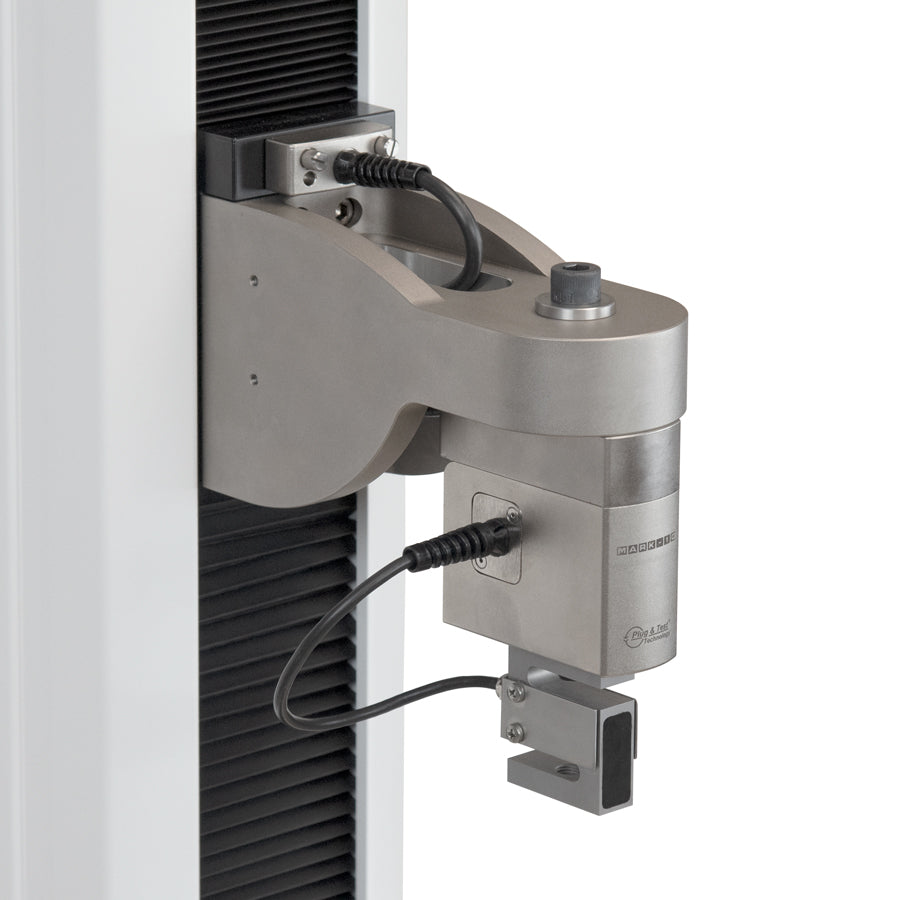

The Mark-10 PTA is a user-configurable Plug & Test adapter that lets you connect common strain gauge-based load cells, force sensors and torque sensors to Mark-10 Model M7I, M5I and M3I indicators. Unlike the PTAF, which is limited to force sensors on Series F frames, the PTA also accepts torque sensors. Sensor wires terminate on a screw terminal block, and capacity, resolution and an ID number are stored in the adapter using the supplied software utility.
Key features
- Works with strain gauge-based load cells, force sensors and torque sensors

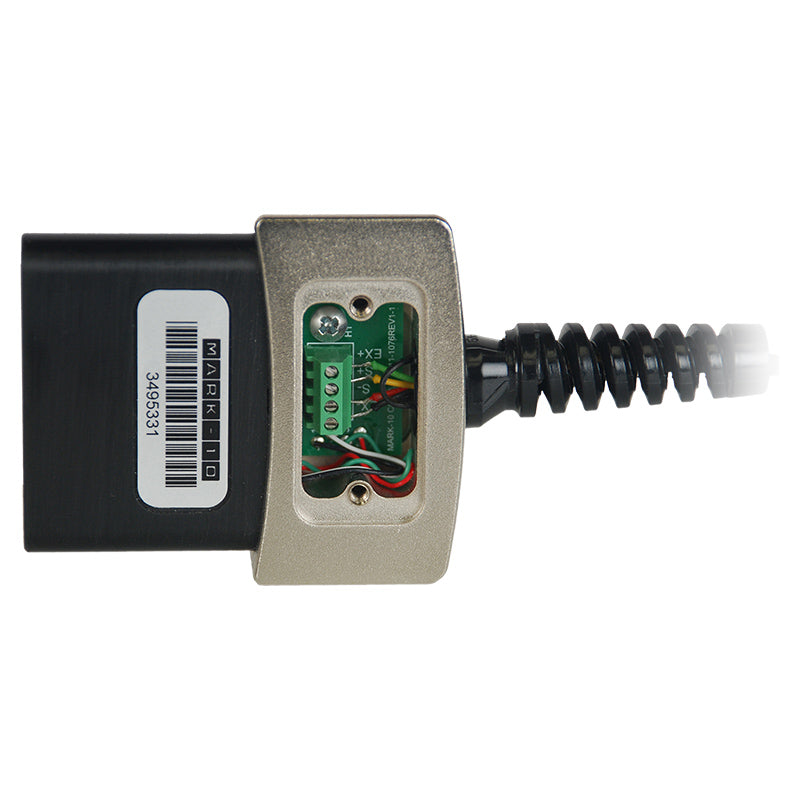

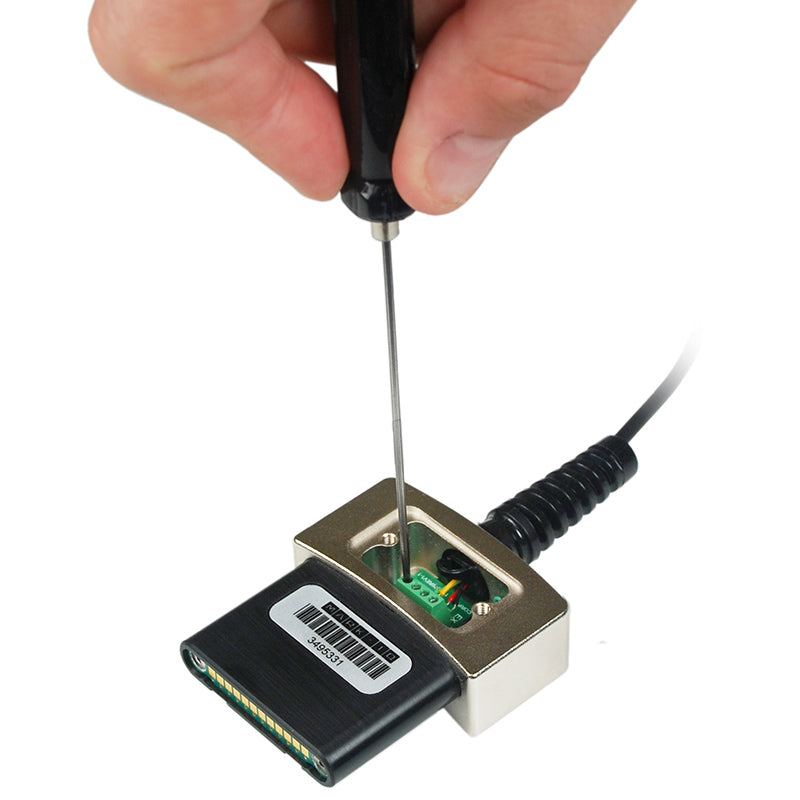

- Screw terminal block for connecting sensor wires without soldering

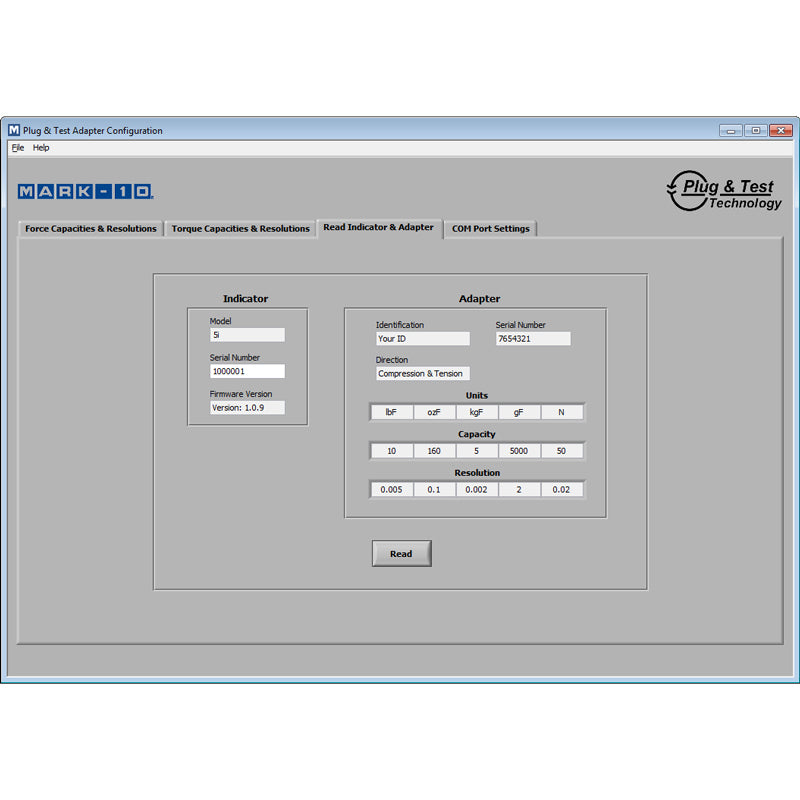

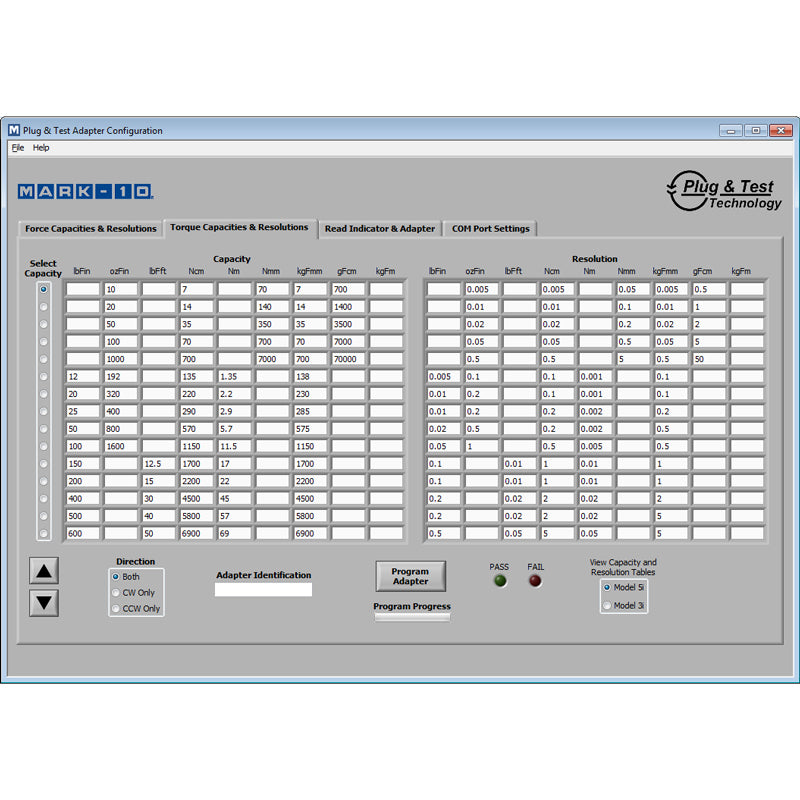

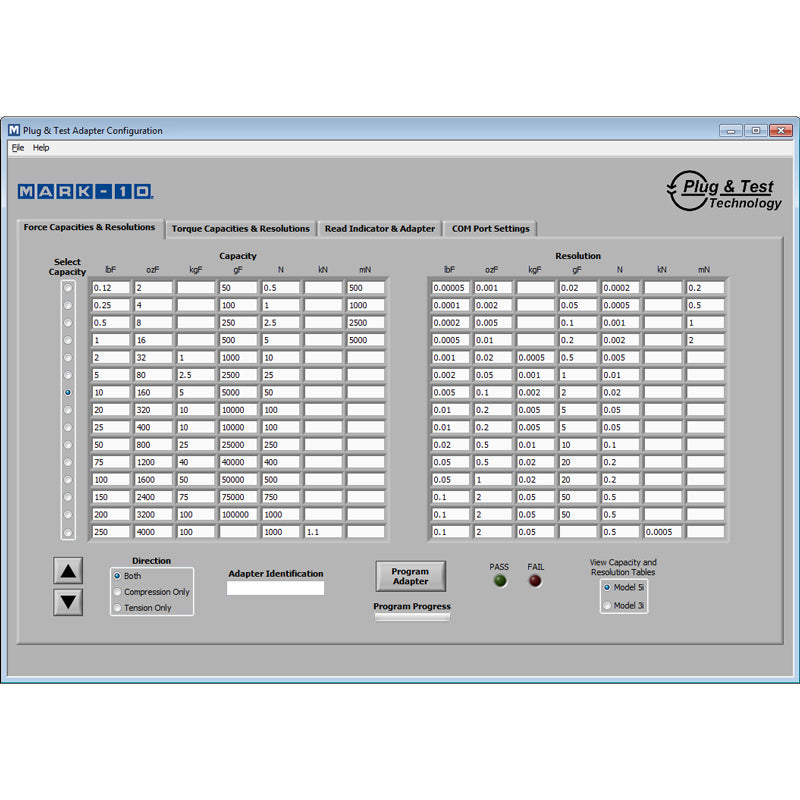

- Capacity, resolution and identification number set via the included software utility
- Programmed over USB or RS-232 through the indicator
- Needs a Mark-10 indicator running firmware 1.0.9 or later
- Comes with a strain relief and a user-writable ID label
For pricing, please contact our experts.
