Mark-10 MTT02-25 | Series TT02 Torque Tool Tester | 25 lbFin / 290 Ncm
Part Number : MTT02-25

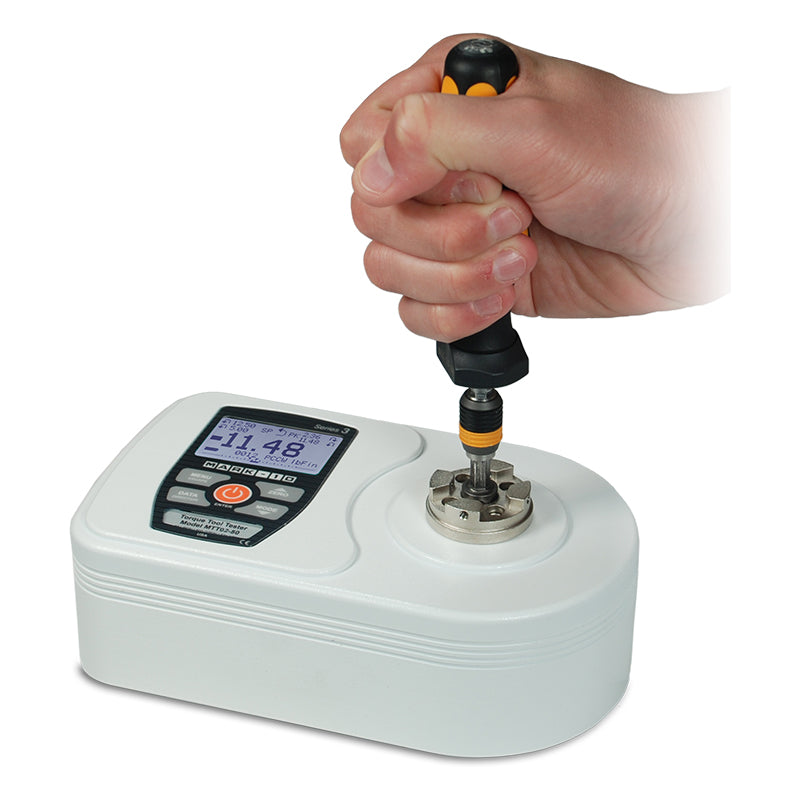

The Mark-10 MTT02-25 is the 25 lbFin (290 Ncm) model of the Series TT02 torque tool tester, used to check manual, electric and pneumatic screwdrivers, wrenches and similar tools. It is the lowest capacity in the TT02 series, which also includes 50 and 100 lbFin versions. A 3/8 in square receptacle accepts common bits and attachments, and the MTT02-25 records first and second peaks in both directions, which helps with click-type tools.
Key features
- Capacity: 25 lbFin / 290 Ncm
- 7,000 Hz sampling for accurate peak capture
- Break detection: auto output, storage and zeroing on tool click or slip
- 1,000-point memory with statistics
- USB, RS-232, Mitutoyo and analog outputs
- Programmable set points for pass/fail checks, plus password protection
- 5 selectable units; battery or AC operation
For pricing, please contact our experts.
