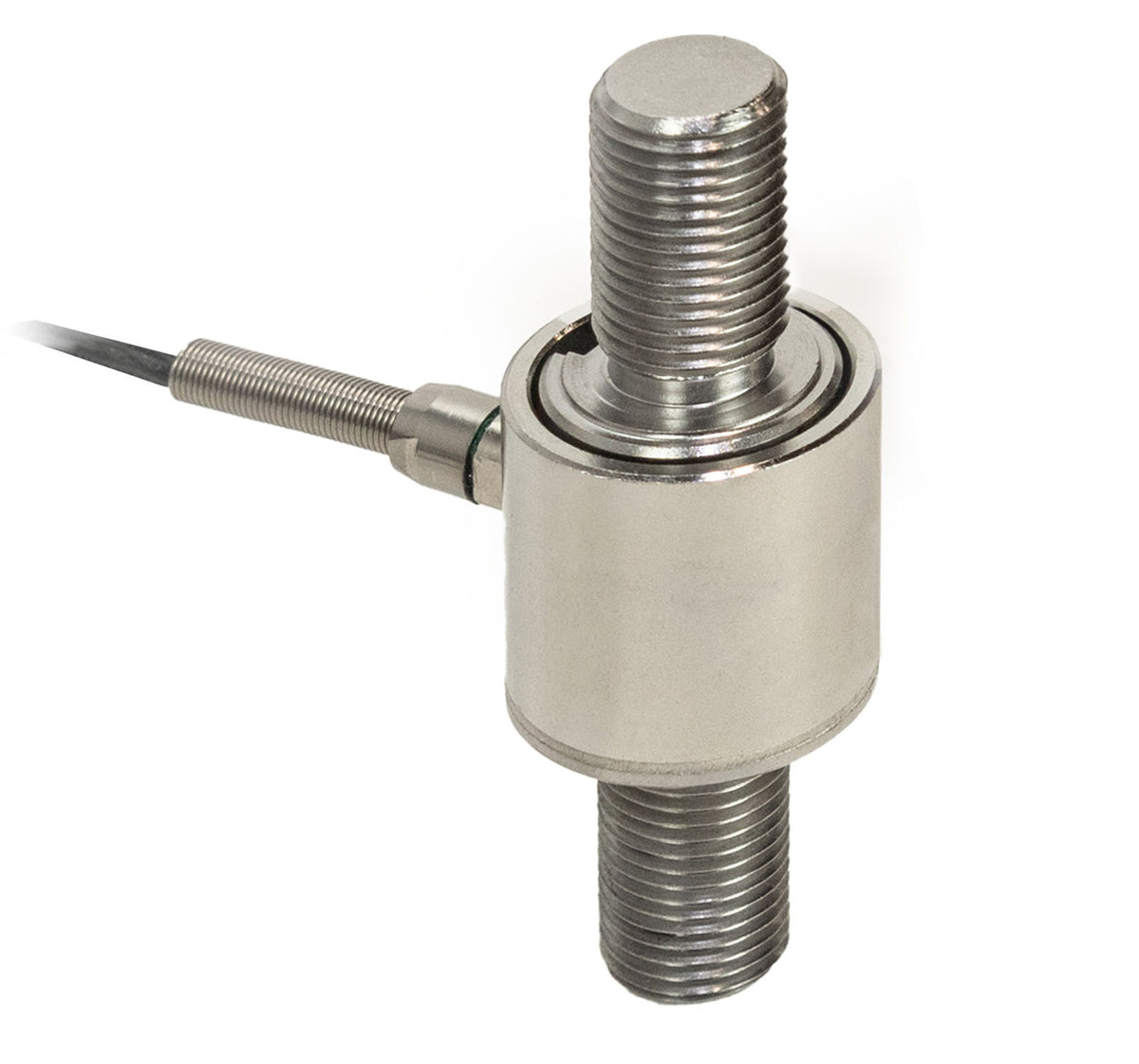

Mark-10 MR08-5000 | Series R08 Tension & Compression Force Sensor | 5000 lbF / 25 kN
Part Number : MR08-5000
The Mark-10 MR08-5000 is a 5000 lbF / 25 kN tension and compression force sensor from the Series R08 range, which spans capacities up to 10,000 lbF (50 kN). Threaded rods at each end make it easy to mount in different test set-ups, and the 17-4PH stainless steel body is built to IP64 for harsh surroundings. It connects to Mark-10 indicators (sold separately) through Plug & Test technology.
Key features
- 5000 lbF / 25 kN capacity in tension and compression
- Threaded rods on both ends for flexible mounting
- 17-4PH stainless steel construction, IP64 rated
- Interchangeable with Mark-10 indicators via Plug & Test
A NIST-traceable calibration certificate with data ships with the sensor. Mark-10 also offers a combined certificate covering the sensor together with an indicator, ordered as CERT-SI.
For pricing, please contact our experts.
