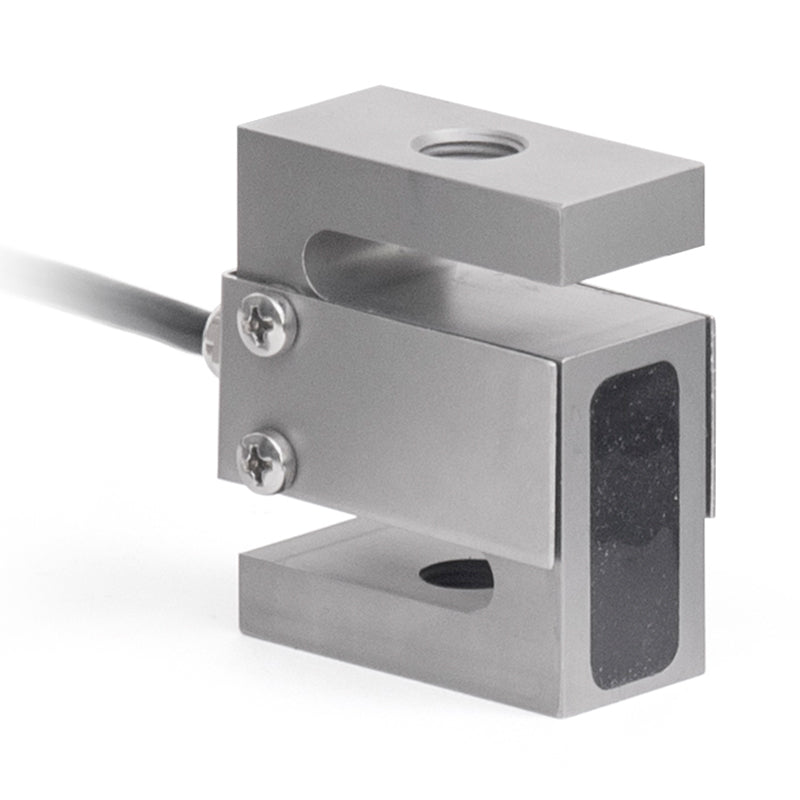

Mark-10 MR07-300 | Series R07 Tension & Compression Force Sensor | 300 lbF / 1.5 kN
Part Number : MR07-300
With a 300 lbF (1.5 kN) capacity, Mark-10 MR07-300 is the Series R07 sensor to choose for tension and compression work at this load on a Series F frame. The MR07-300 fits models F755, F755S, F1505 and F1505S; it is not intended for the F105, F305, F505 or F505H. Plug & Test technology keeps the MR07-300 calibration data in the sensor itself, so it can be checked on the test frame or away from it using a Mark-10 indicator.
Key features
- Series R07 sizing for F755, F755S, F1505 and F1505S frames (300 lbF model)
- Calibrate the MR07-300 on the frame or off-site with a Mark-10 indicator
- Interchangeable with other Plug & Test sensors and indicators at 1.5 kN
- R07 rating of 300 lbF (1.5 kN) in tension and compression
- Plug & Test sensor: MR07-300 stores its own configuration and calibration data
For pricing, please contact our experts.
