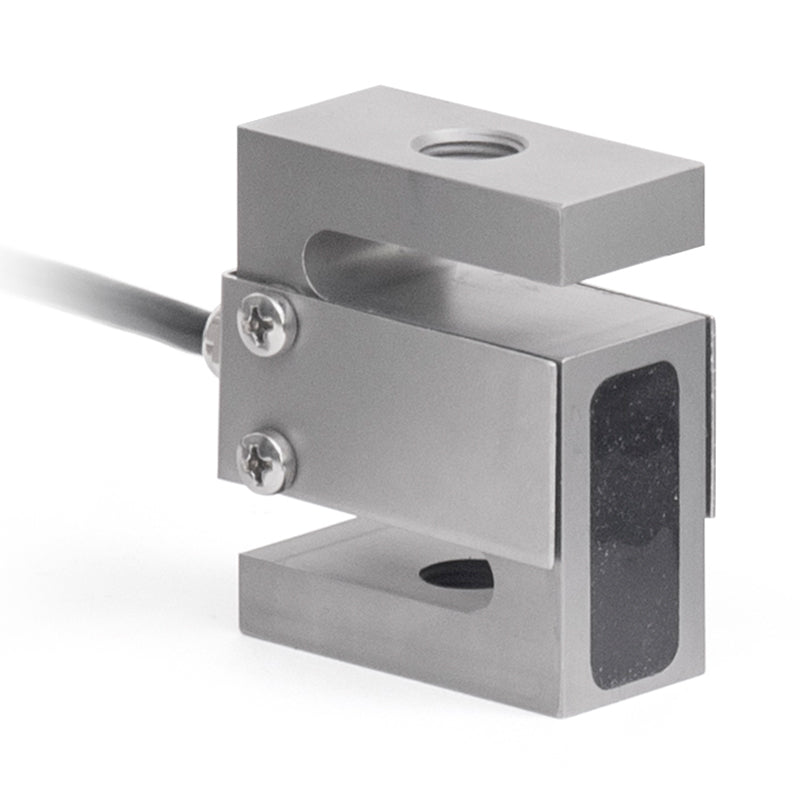

Mark-10 MR07-1000 | Series R07 Tension & Compression Force Sensor | 1000 lbF / 5 kN
Part Number : MR07-1000
Rated at 1000 lbF (5 kN), the Mark-10 MR07-1000 is a Series R07 tension and compression sensor intended for the larger Series F test frames. Compatible frames for the MR07-1000 are the F755, F755S, F1505 and F1505S, while the F105, F305, F505 and F505H cannot use it. Because configuration and calibration data for the 1000 lbF (5 kN) range live inside the sensor, the MR07-1000 can be calibrated on the frame or off-site with a Mark-10 indicator.
Key features
- R07 rating of 1000 lbF (5 kN) in tension and compression
- Plug & Test sensor: MR07-1000 stores its own configuration and calibration data
- MR07-1000 supplied with a NIST-traceable calibration certificate with data
- Series R07 sizing for F755, F755S, F1505 and F1505S frames (1000 lbF model)
- Calibrate the MR07-1000 on the frame or off-site with a Mark-10 indicator
For pricing, please contact our experts.
