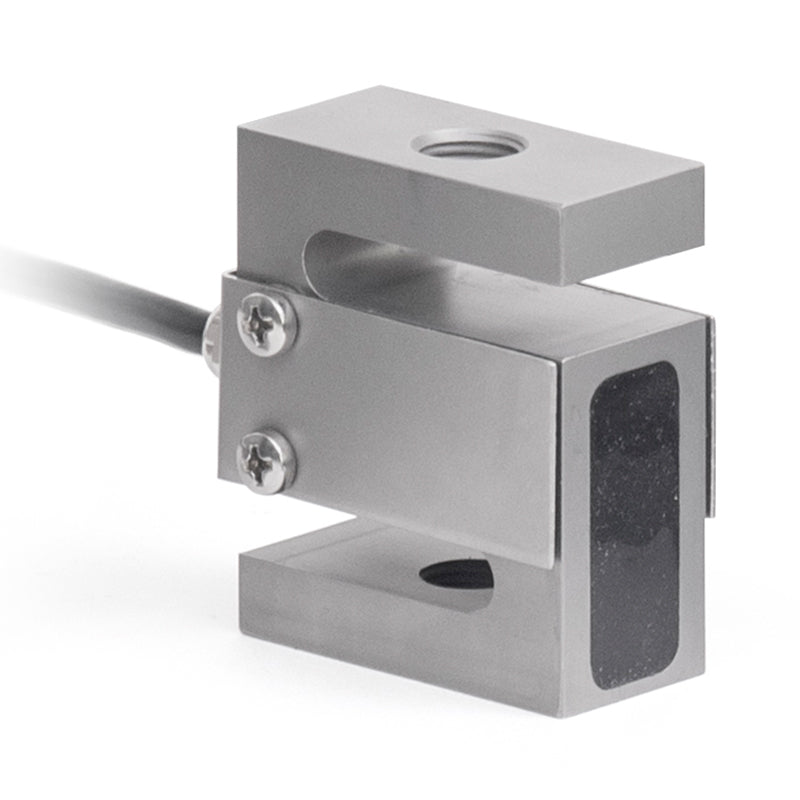

Mark-10 MR01-200 | Series R01 S-Beam Force Sensor | 200 lbF / 1 kN
Part Number : MR01-200
Measuring tension and compression up to 200 lbF / 1 kN, the Mark-10 MR01-200 uses the S-beam layout of the Series R01 range. The rugged S-beam construction, with threads on two sides, adapts to many test arrangements. Mark-10 indicators, sold separately, connect through Plug & Test; the R01 family spans 50 to 10,000 lbF (250 N to 50 kN).
Key features
- 200 lbF / 1 kN rated S-beam sensor
- Tension and compression measurement
- Threads on two sides for fixtures and attachments
- Works with Mark-10 indicators through Plug & Test
A NIST-traceable calibration certificate with data ships with the sensor. Mark-10 also offers a combined certificate covering the sensor together with an indicator, ordered as CERT-SI.
For pricing, please contact our experts.
