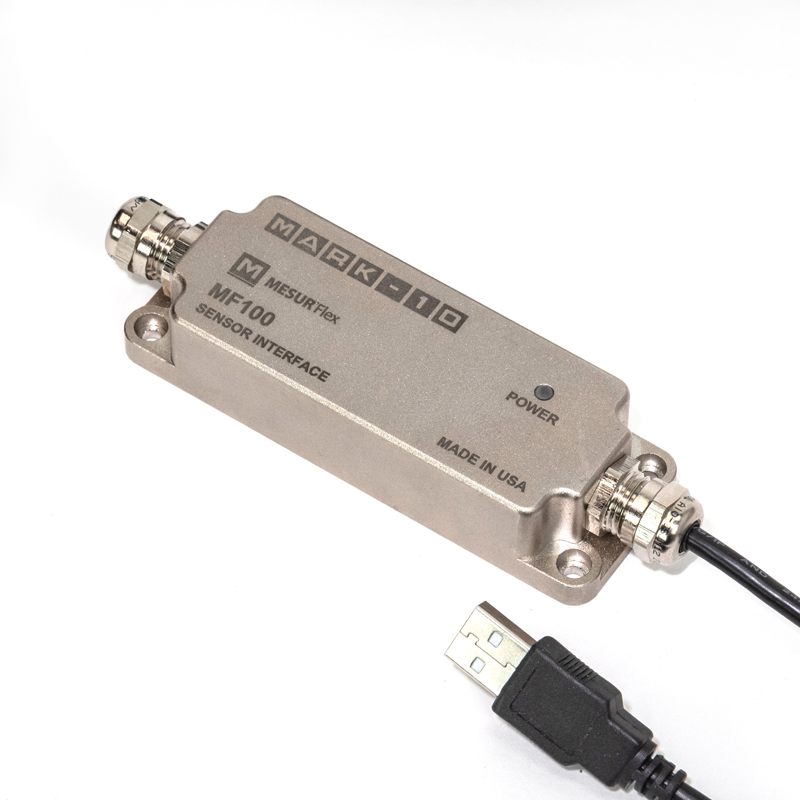

Mark-10 MF100 | USB Sensor Interface | 0.5 N–4,000 kN Force, 7 Ncm–57,000 Nm Torque
Part Number : MF100

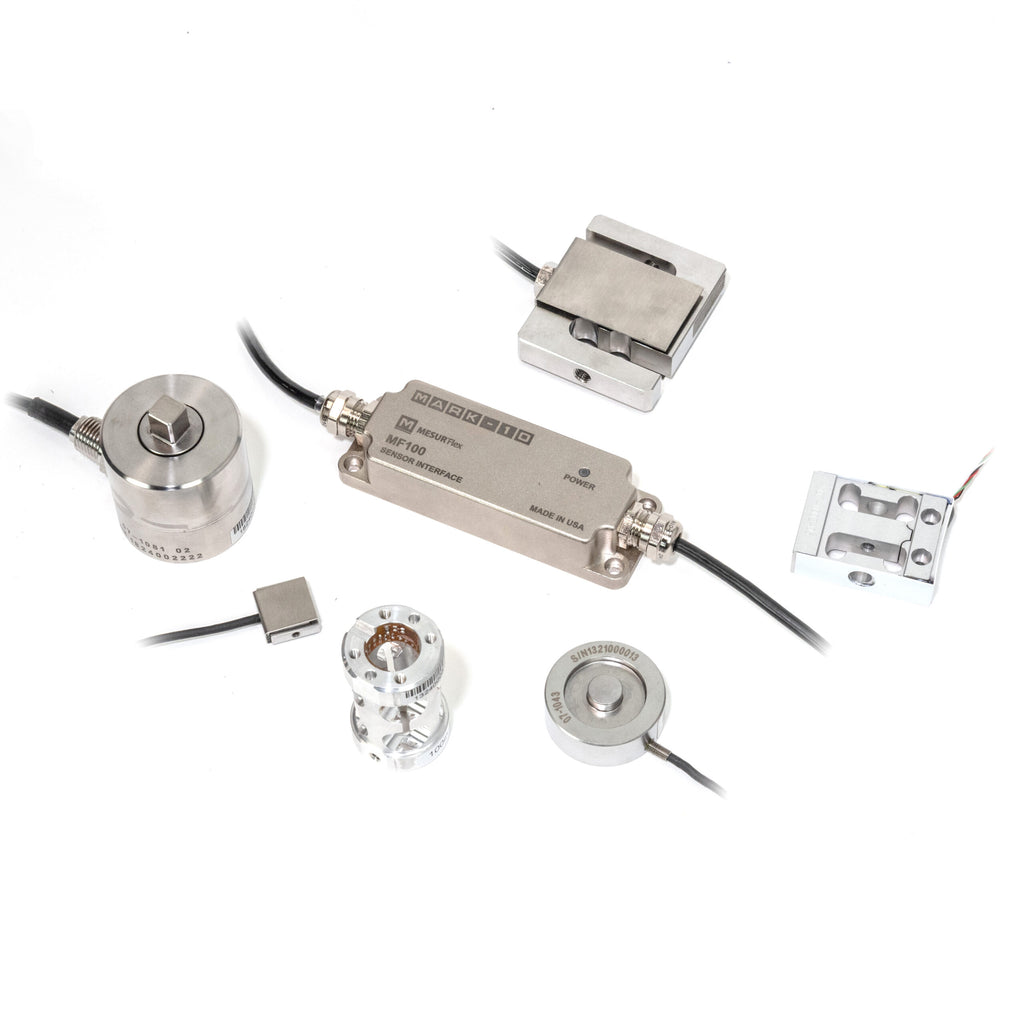

The Mark-10 MF100 links strain gauge-based load cells, force sensors and torque sensors directly to a PC or USB hub, without a separate indicator. It works with MESUR®Flex configuration software, which supports force sensors from 0.12 to 750,000 lbF (0.5 N to 4,000 kN) and torque sensors from 10 ozFin to 40,000 lbFft (7 Ncm to 57,000 Nm). Typical uses include weighing, force and torque measurement, and integration into automated data collection systems via serial commands.
Key features
- Connects strain gauge sensors to a PC over USB

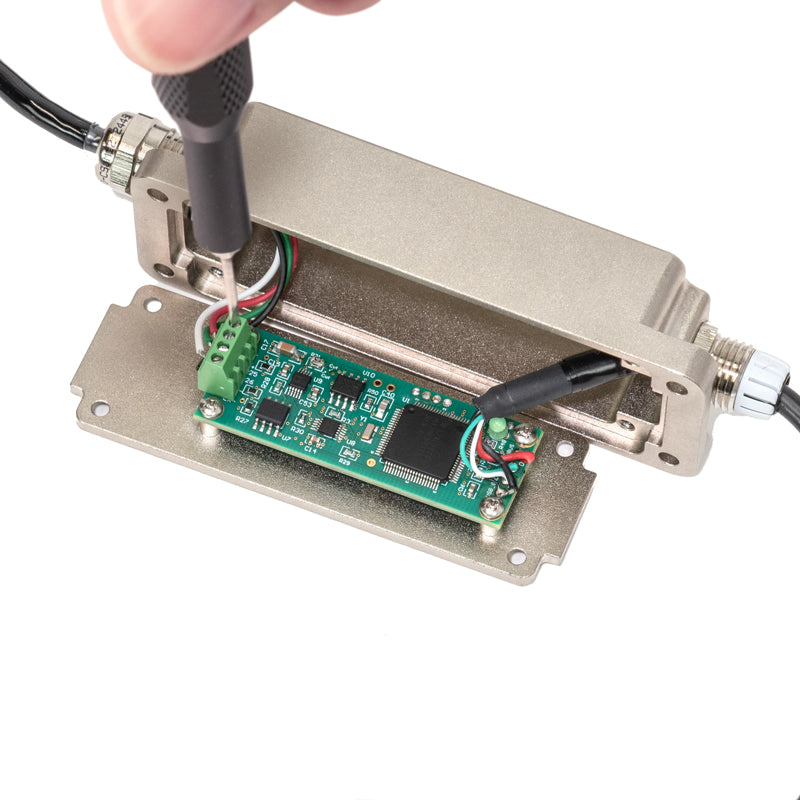

- Screw terminal block for quick, solder-free sensor wiring

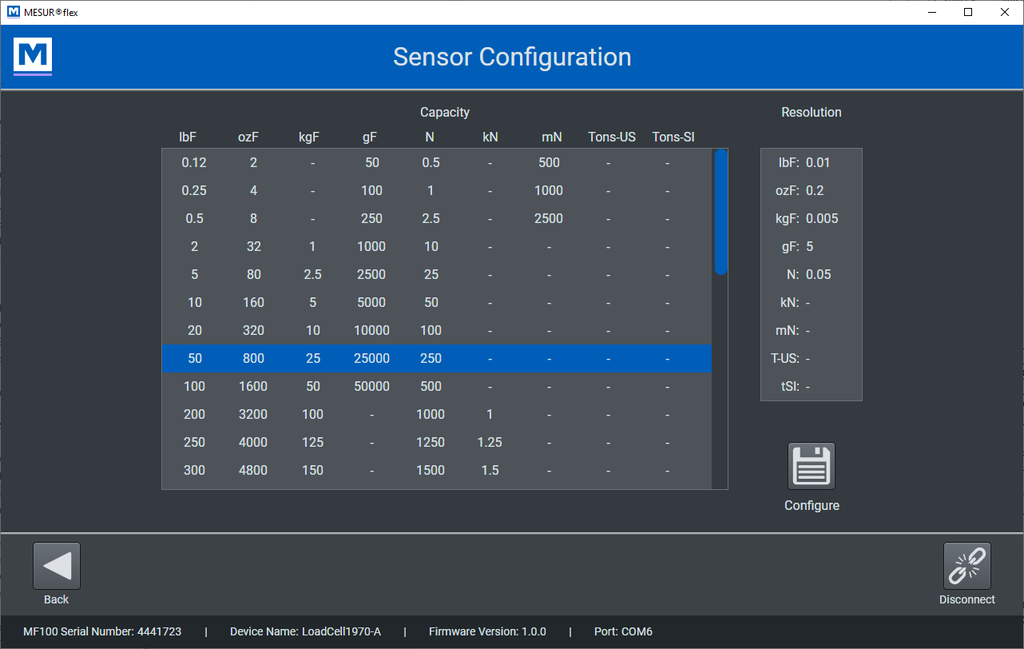

- Sensor capacity, resolution and identifier set in MESUR®Flex

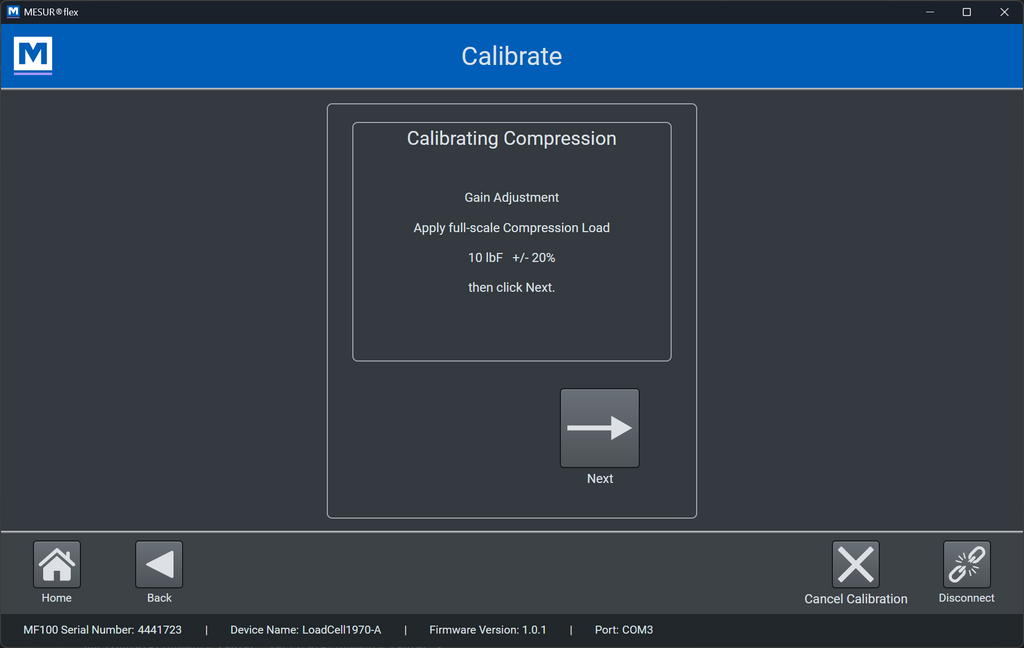

- Step-by-step calibration wizard on the PC

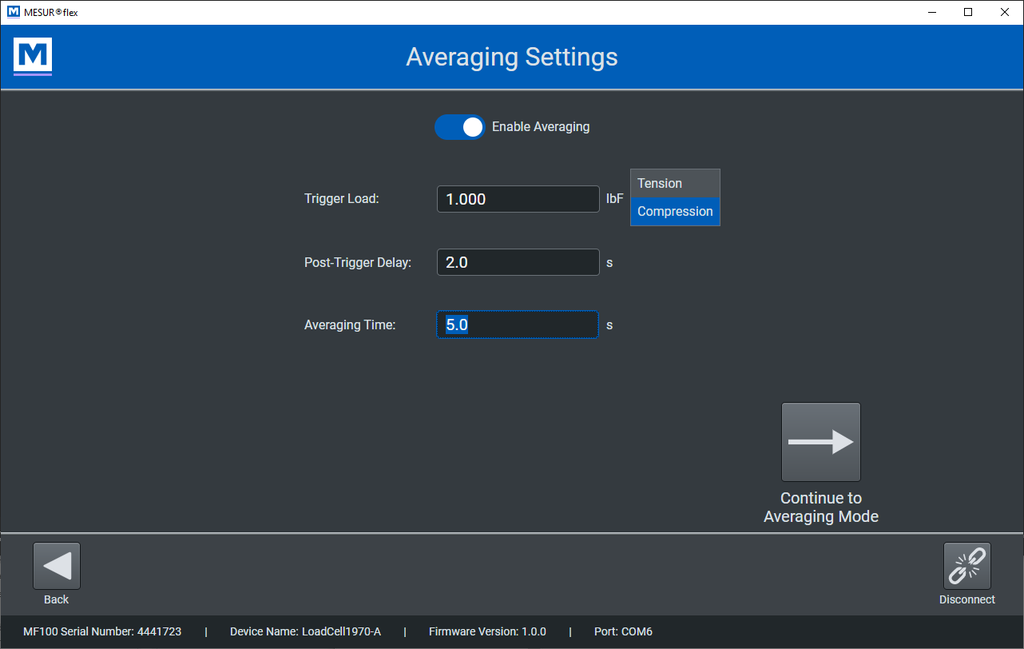

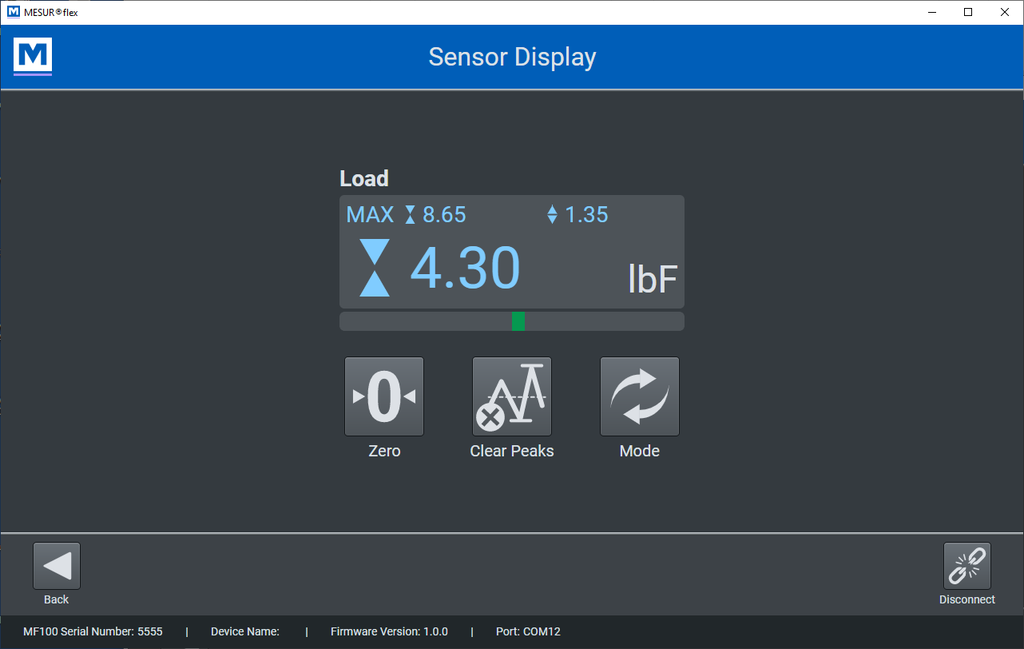

- Shows peak, real-time and time-averaged readings with selectable units
- Library of serial commands for control and data acquisition
For pricing, please contact our experts.
