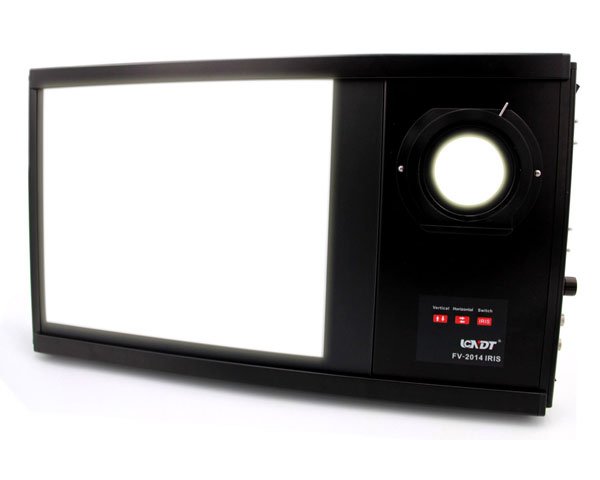

LCNDT FV-2014IRIS | 14 x 17 inch LED Film Viewer with Spot View | 82,800 cd/m2 14x17 Window, IRIS Spot View 280,000 cd/m2
The FV-2014IRIS is an industrial LED film viewer with two windows: a 335 x 410 mm view for 14 x 17 inch film (at least 82,800 cd/m2) and an adjustable IRIS spot view from 5 to 100 mm diameter (at least 280,000 cd/m2). One key switches between the two views, and both can be dimmed from 5% to 100%.
Key features
- Dual view window: 14 x 17 inch view and IRIS spot view, switched by one key
- Spot view adjustable from 5 mm to 100 mm diameter, at least 280,000 cd/m2
- Large view at least 82,800 cd/m2; electronic light mask for any film size
- Both views dimmable from 5% to 100%
- Designed for continuous 24-hour operation
- Complies with ISO 5580 and EN 25580; CE approved
- Specifications
- Features
- Downloads
| Part Number | FV-2014IRIS |
| Brand | LCNDT |
| Certification | CE |
| Weight | 8.45 kg (18 lb) |
| Power Supply | 85-264 VAC, 47-63 Hz (switch selected) |
| Standards | ISO 5580, EN 25580 |
| Warranty | 2 years |
| Dimensions (L x W x H) | 710 x 410 x 55 mm, without support leg |
| 14 x 17 inch View Max Luminance | >= 82,800 cd/m2 (260,000 lux) |
| 14 x 17 inch View Window | 335 x 410 mm (13 x 16.1 inch) |
| 14 x 17 inch View Uniformity / Diffusion | g = 0.9 / 0.95 |
| Spot View Max Luminance | >= 280,000 cd/m2 (879,200 lux) |
| Spot View Window | 5-100 mm diameter (0.2-3.94 inch) |
| Spot View Uniformity / Diffusion | g = 0.95 / 0.95 |
Dual view window, 14 x 17 inch and IRIS spot view
Electronic light mask and IRIS Adjustable
Rugged viewer feet, support any angle
One key to switch between 2 view window
