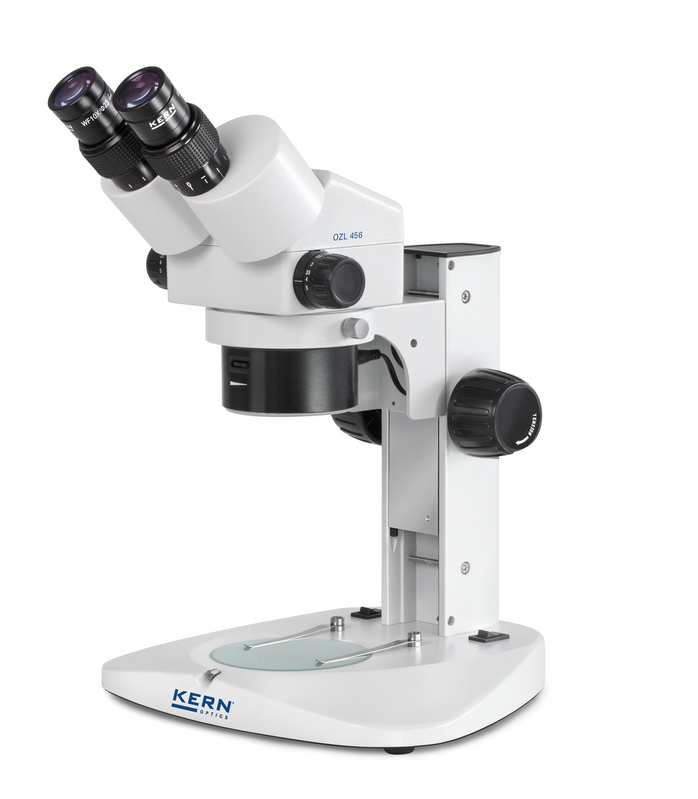

Kern OZL 456 | Stereo Zoom Microscope | Ocular magnifications 10 x
You will be impressed by the KERN OZL 456 stereo zoom microscope series' superb optical qualities, simplicity of use, and integrated LED ring illumination unit.
The powerful, continuously dimmable, integrated LED ring illumination in the objective housing of the KERN OZL 456 is its best feature; it guarantees even, shadow-free illumination. There's also an LED transmitted light version.
This type is an exceptional all-arounder for all application areas because to its powerful integrated LED illumination unit and built-in, excellent optics.
This microscope gives you continuous total magnification ranging from 7.5 x to 50 x as usual.
The KERN OZL-45R series is normally supplied in binocular form with 10× eyepieces and a 23 mm diameter field of view.

Free UAE shipping available
- Specifications
- Features
- Downloads
Dimensions | 320ƒ-275ƒ-420 mm |
Storage Temperature | -5 °C to 40 °C |
Type | Binocular |
- binocular-style eyepieces for glasses wearers with a wide field of vision.
- Zoom the objective from 0.75x to 5.0x.
- Arm bent in a standard manner.
- LED incidence lighting with 1W power.
- 0.21W LED light source emitting light.
- Typical 230V mains connector installation.
- Adjustment of diopter on both sides.
- Greenough optical apparatus.
- The LED ring is dimmable as required.
