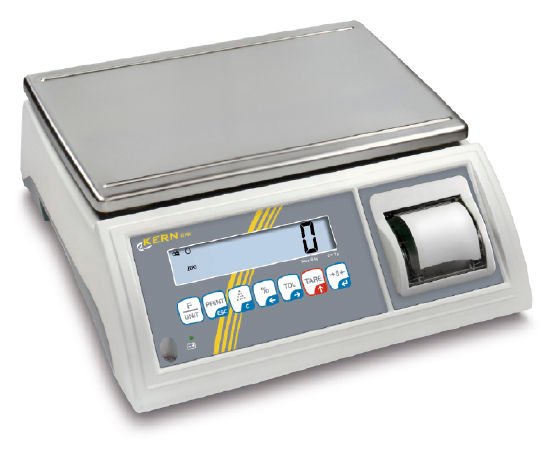

KERN GAB-3PM | Counting Bench Scale | 15 kg / 30 kg, d = 5 g / 10 g
Weighing up to 15 kg / 30 kg in steps of 5 g / 10 g, the KERN GAB-3PM uses a stainless steel plate measuring 365 × 235 mm. Built for documented weighing, the GAB-3PM prints weight, quantity, totals and percentage with date and time, for tasks such as stocktaking.
- Linearity 5 g / 10 g with 5 g / 10 g reproducibility
- 10 min warm-up and 2 s stabilisation time on the GAB-3PM
- Piece counting with a 10 g minimum piece weight (1 g under laboratory conditions), plus percentage determination
- Tolerance weighing on the GAB-3PM
- Runs up to 150 h on battery with backlight off (80 h with backlight on)
- GAB-3PM weighing units: g kg
- Specifications
- Features
| Part Number | GAB-3PM |
| Brand | KERN |
| Linearity | 5 g / 10 g |
| Reproducibility | 5 g / 10 g |
| Weighing Surface (W × D) | 365 × 235 mm (14.4×9.25 in) |
| Weighing Plate Material | Stainless steel |
| KERN Item Number | GAB 30Kg-3PM |
| Maximum Capacity | 15 kg / 30 kg |
| Readout (d) | 5 g / 10 g |
| Stabilisation Time | 2 s |
| Weighing Units | g kg |
| Operating Time (Backlight Off) | 150 h |
| Recommended Adjusting Weight | 30 kg (M1) |
| Mains Input | 220 V - 240 V AC 50 Hz |
- Internal printer: Robust high-speed thermal printer. Fast and easy change of paper rolls. Innovative paper compartment construction
- Weighing with tolerance range (checkweighing): Input of an upper/lower limit value. A visual and audible signal assists with portioning, dispensing or grading
- Checkweighing and portioning scale with integrated printer and EC type approval [M]
