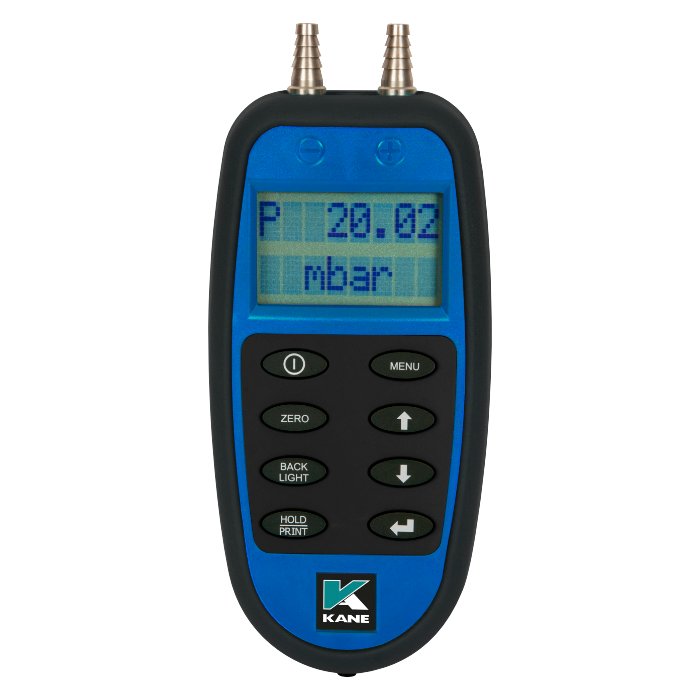

Kane 3500-15 | Differential Pressure Meter | Range 1040mbar
Kane's 3500-15 manometer measures differential pressure levels up to 1040mbar! The 3500-15, an upgraded version of the 3500-1, has a much wider measurement range and can be used in a wider range of pressure applications. It can measure pressure in a variety of units; units can be switched between mbar, kPa, PSI, mmhg, inH20, and hPa with the press of a button. Internal temperature compensation is standard on all Kane 3500 series metres. This function ensures that accuracy is maintained if the metre is moved from a cold to a hot environment (or vice versa). Live, held, and logged readings can be wirelessly printed via infrared connection by combining the 3500-15 with Kane's optional printer (KMIRP - sold separately).

Free UAE shipping available
- Specifications
- Features
- Downloads
Dimensions | 160mm x 80mm x 40mm (180mm incl. spigots |
Operating Temperature | 0 to 45°C 10 to 90% RH (non-condensing) |
Power Supply | 9V PP3 alkaline battery |
Range | +/-309.99hPa to +/-1040hPa |
Resolution | 0.01hPa to 0.1hPa |
Weight | 310g with battery |
Data hold function freezes the last value taken on the screen
MAX/MIN recording - determines the maximum or minimum value taken over a period of time
Compatible with Kane wireless infrared printer (sold separately)
Smoothing function filters out pressure pulses to maintain accuracy
Range to 1040mbar
Resolution down as low as 0.001mbar
Temperature compensation - automatically maintains accuracy when the meter is brought from colder to warmer conditions
Switchable high and low resolution
Selectable measurement units: mbar, kPa, PSI, mmhg, inH20 and hPa.
