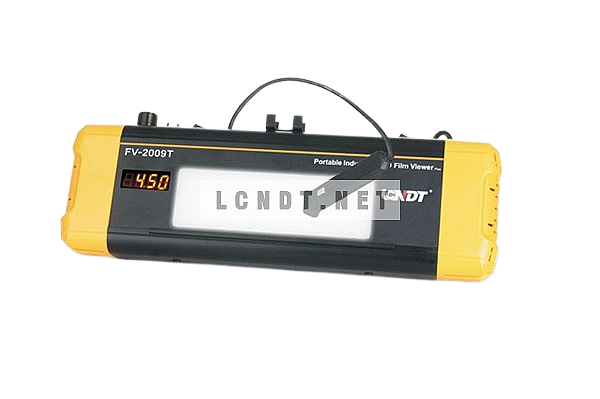

LCNDT FV-2009T | Intelligent LED Film Viewer with Built-in Densitometer | 120,000 cd/m2, Integrated Densitometer +/-0.02 D, 200 x 60 mm
The FV-2009T combines an industrial LED film viewer and a densitometer in one unit. The luminous surface of the viewer serves as the light source for the densitometer, and density is read where a pen-type probe touches the film. Viewer luminance is at least 120,000 cd/m2 with a 200 x 60 mm window, and densitometer accuracy is +/-0.02 D up to 5.0 D.
Key features
- Viewer and densitometer integrated in one unit, saving bench space
- Pen-type probe reads density at any point on the film, including large films
- Max luminance of at least 120,000 cd/m2 (376,000 lux)
- Densitometer accuracy +/-0.02 D, maximum density >= 5.0 D
- 200 x 60 mm viewing window; uniformity g >= 0.95
- Complies with ISO 5580 and EN 25580; CE approved
- Specifications
- Features
- Downloads
| Part Number | FV-2009T |
| Brand | LCNDT |
| Certification | CE |
| Weight | 2.5 kg (5.5 lb) |
| Power Supply | 85-264 VAC, 47-63 Hz |
| Standards | ISO 5580, EN 25580 |
| Warranty | 2 years |
| Uniformity | g >= 0.95 |
| Diffusion Factor | >= 0.95 |
| Viewer Window | 200 x 60 mm (7.87×2.36 in) |
| Dimensions (L x W x H) | 455 x 140 x 65 mm (17.9 x 5.5 x 2.6 inch) |
| Max Luminance | >= 120,000 cd/m2 (376,000 lux) |
| Surface Temperature Rise | <= 15 C after 12 h at maximum luminance |
| Densitometer Accuracy | +/-0.02 D |
| Max Density (Densitometer) | >= 5.0 D |
Portable LED film viewer combine with Densitometer
High Luminance:≥l20,000 Cd/m²
Density:≥4.1H/D
Viewing Screen:8’X 2.5’(200 X 60mm)
High Accuracy:±0.02D
Program Mode for customer calibration(patent technology)
Separated design,easy for maintaince
Rugged design.whole alloy aluminium
