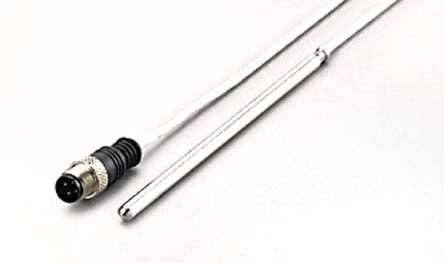

Name: ifm TS2452, PT100 RTD Sensor, 6mm Dia, 150mm Long, Probe, +600°C Max
Brand: ifm
SKU: TS2452
Availability: OutOfStock

ifm TS2452, PT100 RTD Sensor, 6mm Dia, 150mm Long, Probe, +600°C Max

Client Protection

Dedicated Support

Client Protection

Dedicated Support

ifm TS2452, PT100 RTD Sensor, 6mm Dia, 150mm Long, Probe, +600°C Max

Part Number : TS2452

Availability: Sold out

Detailed Description
Specifications

ifm Electronic TR Series Temperature Transmitter

Ifm Electronic TR series temperature sensors evaluation unit is a universal control and display unit for connection of Pt100 / Pt1000 sensors. TR series sensors automatically detects whether two, three or four wire sensors are connected. The measuring range has freely scalable parameters that can bet set via an integrated IO-Link interface.

A simple three push button operation with integrated display allows switching states to be highlighted. The sensor head can be rotated and offers optimum readability from any position.

Features and Benefits

IO-Link interface
4-digit alphanumeric display
LED status indicators
IP67 Rated
Flexible installation

Brand	ifm
Sensor Type	PT100
Probe Length	150mm
Probe Diameter	6mm
Minimum Temperature Sensed	-100°C
Maximum Temperature Sensed	+600°C
Termination Type	M12 Connector
Cable Length	2m
Probe Material	Stainless Steel
Process Connection	Probe
Response Time	12 (T05) s, 34 (T09) s
