ifm TR7439, RTD Sensor, 4 Wire, +600°C Max

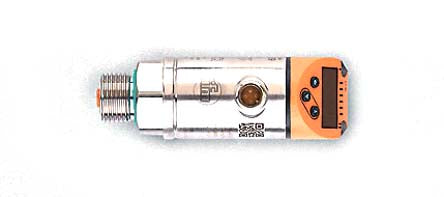

Name: ifm TR7439, RTD Sensor, 4 Wire, +600°C Max
Brand: ifm
SKU: TR7439
Availability: OutOfStock

Part Number : TR7439

The TR7439 evaluation unit for temperature sensors from ifm has two programmable outputs (NC/NO). The measuring range is -100-600 °C and the default factory setting on delivery is -40-300 °C. Pt100/Pt1000 measuring elements can be connected. The 4-digit alphanumeric display and the M12 connection enable easy handling as well as quick connection of the TR7439 evaluation unit for temperature sensors. Thanks to the high protection rating of IP67 and communication via IO-Link specification 1.1, evaluation of Pt100/Pt1000 measuring elements in mechanical engineering, e.g. on hydraulic power packs is possible.

Availability: Sold out

Detailed Description
Specifications
Features
Downloads

ifm Electronic TR Series Temperature Transmitter

Ifm Electronic TR series temperature sensors evaluation unit is a universal control and display unit for connection of Pt100 / Pt1000 sensors. TR series sensors automatically detects whether two, three or four wire sensors are connected. The measuring range has freely scalable parameters that can bet set via an integrated IO-Link interface.

A simple three push button operation with integrated display allows switching states to be highlighted. The sensor head can be rotated and offers optimum readability from any position.

Features and Benefits

IO-Link interface
4-digit alphanumeric display
LED status indicators
IP67 Rated
Flexible installation

Brand	ifm
Minimum Temperature Sensed	-100°C
Maximum Temperature Sensed	+600°C
Termination Type	M12 Connector
Probe Material	Stainless Steel
Interface	IO-Link
Number Of Wires	4
