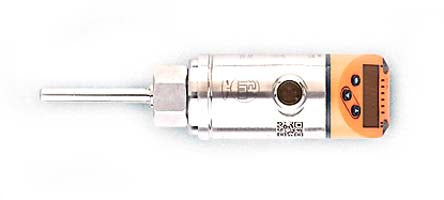

ifm TN7511 | RTD Sensor | M18, +150°C
The ifm TN7511 is a rtd sensor with process connection M18, sensor type PT1000 and probe length 45mm. ifm lists very large temperature evaluation range, two switching outputs, one of them with IO-Link communication interface and intuitive and user-friendly 3-pushbutton control among its features.
- Sensor Type: PT1000
- Probe Length: 45mm
- Probe Diameter: 6mm
- Maximum Temperature Sensed: +150°C
- Termination Type: M12 Connector
- Probe Material: Stainless Steel
- Process Connection: M18
- Interface: IO-Link
- Detailed Description
- Specifications
- Features
- Downloads
ifm Electronic TN Series Temperature Transmitter
A simple three push button operation with integrated display allows switching states to be highlighted. The sensor head can be rotated and offers optimum readability from any position.
Features and Benefits
4-digit alphanumeric display
LED status indicators
IP67 Rated
2 switching outputs
| Brand | ifm |
| Sensor Type | PT1000 |
| Minimum Temperature Sensed | -50 °C (-58 °F) |
| Maximum Temperature Sensed | +150 °C (302 °F) |
| Process Connection | M18 |
| Probe Length | 45 mm (1.77 in) |
| Probe Diameter | 6 mm (0.236 in) |
| Response Time | 3 s |
| Termination Type | M12 Connector |
| Probe Material | Stainless Steel |
| Number Of Wires | 4 |
| Interface | IO-Link |
- Very large temperature evaluation range
- Two switching outputs, one of them with IO-Link communication interface
- Intuitive and user-friendly 3-pushbutton control
- Red/green display for clear identification of the acceptable range
- Clearly visible LEDs for switching status indication
