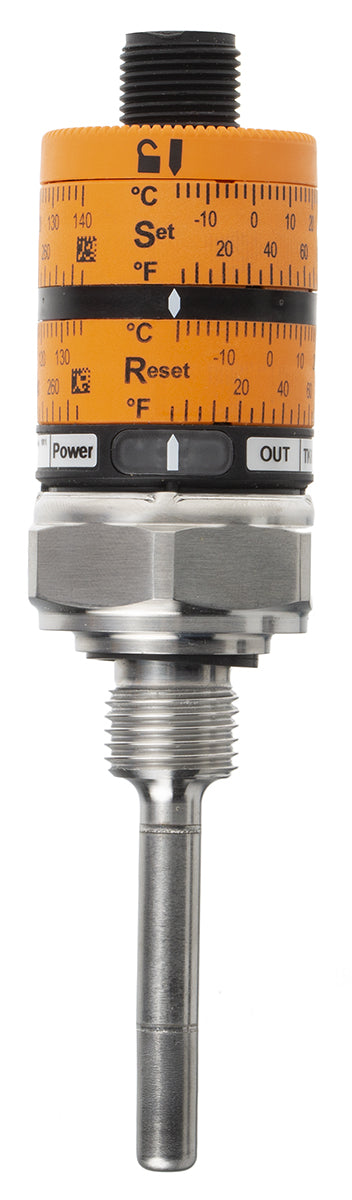

ifm TK6110 | RTD Sensor | G1/4, +145°C

Name: ifm TK6110 | RTD Sensor | G1/4, +145°C
Brand: ifm
SKU: TK6110
Availability: OutOfStock

Part Number : TK6110

The ifm TK6110 is a rtd sensor with process connection G1/4, accuracy ±0.1 °K and sensor type PT1000. ifm lists simple switch point setting by means of two setting rings allowing optimum reading, setting of the switch points without system temperature being applied and two complementary switching outputs with adjustable hysteresis among its features.

Sensor Type: PT1000
Probe Length: 50mm
Probe Diameter: 6mm
Maximum Temperature Sensed: +145°C
Termination Type: M12 Connector
Probe Material: Stainless Steel
Process Connection: G1/4
Number Of Wires: 4

Availability: in stock

Detailed Description
Specifications
Features
Downloads

ifm electronic Sensor

The ifm electronic 4 wire PNP RTD switch sensor is a platinum resistance temperature sensor. It has a 50mm long probe and a diameter of 6mm. It is easy to handle due to the two radial setting rings on the sensor. This enables quick and precise setting of the switch points, without system temperature being applied. The mechanical locking prevents unintentional maladjustment of the sensor.

Features and Benefits

• 1s(T05), 3s(T09) response time
• Compact in dimensions
• Good response for dynamics and very short ’power on' delay time
• Mechanical locking prevents inadvertent switch point manipulation
• Service temperature ranges between -40°C and 145°C
• Setting of the switch points without system temperature being applied
• Simple switch point setting
• Two complementary switching outputs with adjustable hysteresis

Applications

• Automobiles
• Communication and instrumentation
• Computers
• Industrial electronics

Certifications

• CE certified
• CULus listed
• DIN EN60068-2-6
• DIN EN61000-4-2
• DIN EN61000-4-4
• DIN IEC 68-2-27
• EN61000-4-3
• EN61000-4-6
• IP67 rating
• UL listed

Brand	ifm
Sensor Type	PT1000
Probe Length	50mm
Probe Diameter	6mm
Minimum Temperature Sensed	-40°C
Maximum Temperature Sensed	+145°C
Termination Type	M12 Connector
Probe Material	Stainless Steel
Process Connection	G1/4
Number Of Wires	4
Accuracy	±0.1 °K
Response Time	3 s

Simple switch point setting by means of two setting rings allowing optimum reading
Setting of the switch points without system temperature being applied
Two complementary switching outputs with adjustable hysteresis
Fast response dynamics and very short power-on delay time
Mechanical locking prevents inadvertent switch point manipulation
