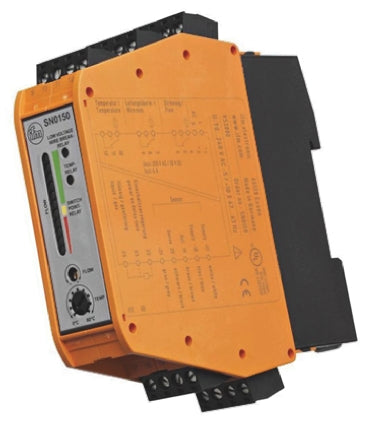

ifm SR0150, DIN Rail Mount Flow Controller, Relay Output, 24 V dc

Name: ifm SR0150, DIN Rail Mount Flow Controller, Relay Output, 24 V dc
Brand: ifm
SKU: SR0150
Availability: OutOfStock

Part Number : SR0150

The SR0150 control monitor for flow sensors from ifm operates with a voltage of 24 V AC and is used for flow, temperature and wire-break monitoring of type SF5 flow sensors. The sensors are connected via premounted Combicon connectors with screw terminals. The slim (25 mm) control cabinet housing can be easily mounted on a DIN rail. Thanks to the easy setting via potentiometer and the optical function indication via LED bar graph the SR0150 control monitor can be used for flow, temperature and wire-break monitoring of type SF5 flow sensors.

Availability: Sold out

Detailed Description
Specifications
Features
Downloads

ifm electronic Flow Controller

The ifm electronic control monitor for flow sensor operates. It has 3 switching functions one is relay energised when the flow is present and during the power-ON delay time for flow monitoring, second is relay energised when the temperature is exceeded for temperature monitoring and third is relay de-energised in case of wire break or short circuit for wire break monitoring. The input supply voltage rating of 24VDC. The sensors are connected via pre-mounted comb icon connectors with screw terminals. The slim (25mm) control cabinet housing can be easily mounted on a DIN rail.

Features and Benefits

For the connection of flow sensors
Adjustable switching outputs for monitoring flow and temperature
Clearly visible multi-coloured LED bar graph display
Signal output via potential-free relay contacts with 4A current rating at 230VAC
Switch points configurable using a potentiometer
DIN rail mounting
Power consumption is 4VA
Combicon connector for electrical connection

Applications

Flow, temperature and wire-break monitoring

Certifications

CE certified
UL listed

Brand	ifm
Electrical Connection	Combicon Connector
Control Output	Relay
Mounting Style	DIN Rail Mount
Supply Voltage	24 V dc
Display Screen	LED
Minimum Operating Temperature	-20°C
Maximum Operating Temperature	+60°C
