ifm SN0150, DIN Rail Mount Flow Controller, Relay Output, 90 → 240 V ac

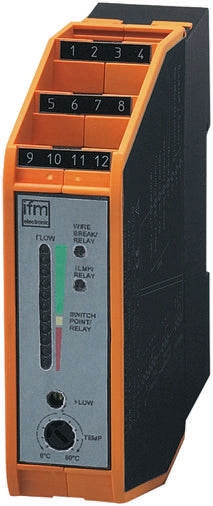

Name: ifm SN0150, DIN Rail Mount Flow Controller, Relay Output, 90 → 240 V ac
Brand: ifm
SKU: SN0150
Availability: OutOfStock

Part Number : SN0150

The SN0150 control monitor for flow sensors from ifm operates with a voltage of 90-240 V AC and is used for flow, temperature and wire-break monitoring of type SF5 flow sensors. The sensors are connected via premounted Combicon connectors with screw terminals. The slim (25 mm) control cabinet housing can be easily mounted on a DIN rail. Thanks to the easy setting via potentiometer and the optical function indication via LED bar graph the SN0150 control monitor for flow sensors can be used for flow, temperature and wire-break monitoring of type SF5 flow sensors.

Availability: Sold out

Detailed Description
Specifications
Features
Downloads

ifm electronic Control Monitor For Flow Sensor

The ifm electronic control monitor for flow sensor operates. It has 3 switching functions one is relay energised when the flow is present and during the power-ON delay time for flow monitoring, second is relay energised when the temperature is exceeded for temperature monitoring and third is relay de-energised in case of wire break or short circuit for wire break monitoring. The input supply voltage rating ranging between 90VAC and 240VAC. The sensors are connected via pre-mounted comb icon connectors with screw terminals. The slim (25mm) control cabinet housing can be easily mounted on a DIN rail.

Features and Benefits

For the connection of flow sensors
Adjustable switching outputs for monitoring flow and temperature
Clearly visible multi-coloured LED bar graph display
Signal output via potential-free relay contacts with 4A current rating at 230VAC
Switch points configurable using a potentiometer
DIN rail mounting
Power consumption is 4VA
Combicon connector for electrical connection

Applications

Flow, temperature and wire-break monitoring
Industrial use

Certifications

CE certified
UL listed

Brand	ifm
Electrical Connection	Combicon Connector
Control Output	Relay
Mounting Style	DIN Rail Mount
Supply Voltage	90 → 240 V ac
Display Screen	LED
Minimum Operating Temperature	-20°C
Maximum Operating Temperature	+60°C
