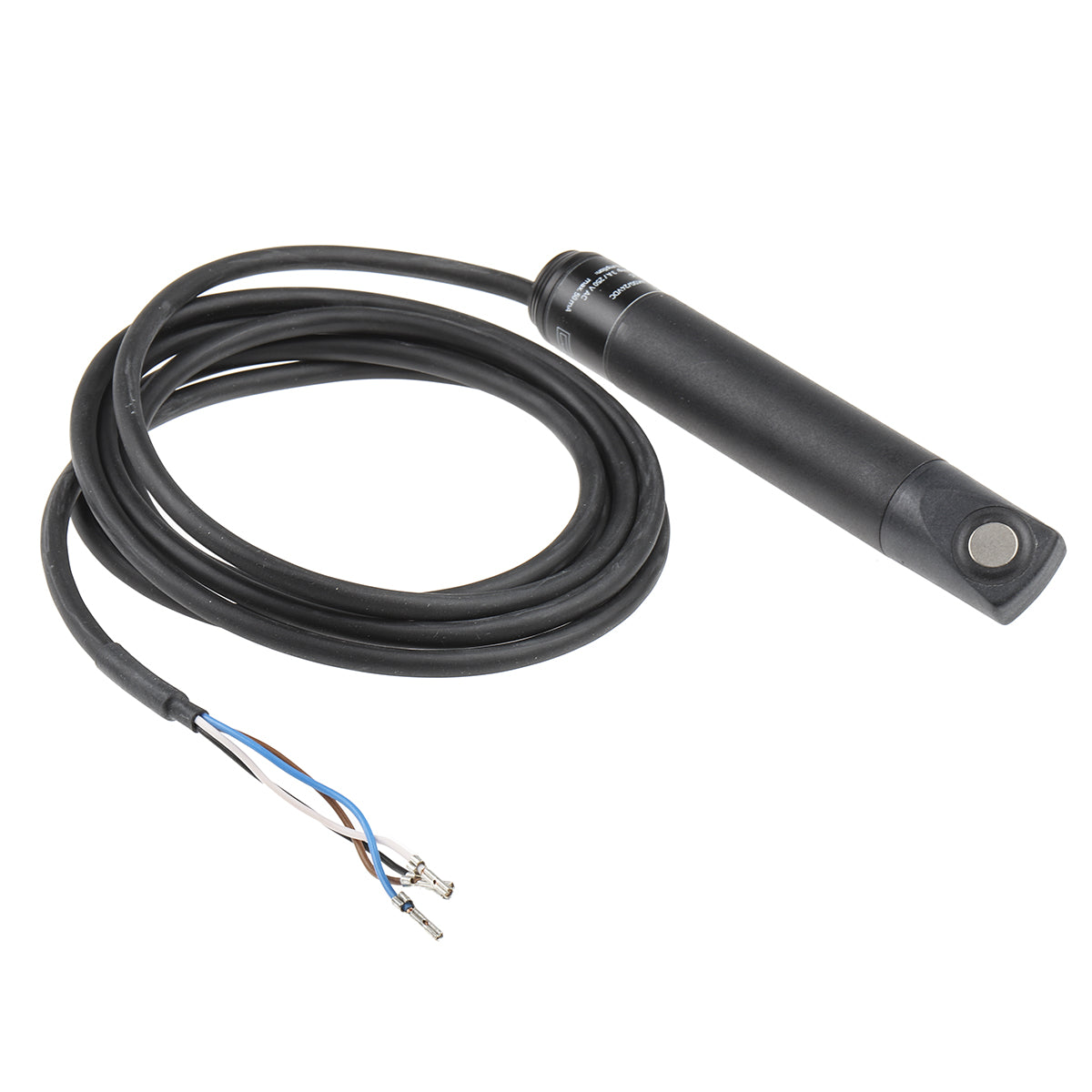

ifm SL5101, Flow Controller, 100 → 1000 cm³/s, Relay Output, 24 V dc, 23 mm Pipe
Part Number : SL5101
The SL5101 compact flow monitor from ifm ensures the optimum air flow thanks to easy setting in a range from 100-1,000 cm/s via potentiometer. The immersion depth into the duct can be flexibly varied via the supplied mounting clamp. Titan sensing faces ensure reliable operation, even with aggressive air, at a medium temperature from -10-50 °C. The SL5101 airflow monitor is available in the electrical design 24 V AC/DC with a 2 m PUR/PVC connection cable. Typically the airflow monitor is used for airflow monitoring in ventilation systems and/or suction operations.
For pricing, please contact our experts.
Airflow Sensor/Switch
Working on the calorimetric principle these sensors have a working range of 1 to 10m/sec (air velocity) and can be set to give an output signal should the airflow drop below the preset level.
Suitable for monitoring in HVAC applications
LED status indication of power/airflow
Insertion depth; 32mm (min), 120mm (max)
Switching point continuously adjustable
Dimensions: Length 140mm, Diameteter 23mm
Supplied with mounting clamp and installation instructions
LED status indication of power/airflow
Insertion depth; 32mm (min), 120mm (max)
Switching point continuously adjustable
Dimensions: Length 140mm, Diameteter 23mm
Supplied with mounting clamp and installation instructions
ifm electronic Airflow Sensor/Switch
The ifm electronic airflow sensor/switch can sense a maximum flow rate of 1000cm³/s
working on the calorimetric principle. It has a supply voltage rating of 24VDC. The immersion depth into the duct can be flexibly varied via the supplied mounting clamp. This sensor has a working range of 1 to 10m/sec (air velocity) and can be set to give an output signal should the airflow drop below the preset level.
Features and Benefits
• Reliable airflow monitoring
• User-friendly setting of the requested immersion depth of the sensor
• Intuitive setting of the switch point via a potentiometer
• Signal output via potential-free relay contacts
• LED status indication of power/airflow
• Insertion depth is 32mm (minimum), 120mm (maximum)
• Switching point continuously adjustable
• Dimensions: Length is 140mm
• User-friendly setting of the requested immersion depth of the sensor
• Intuitive setting of the switch point via a potentiometer
• Signal output via potential-free relay contacts
• LED status indication of power/airflow
• Insertion depth is 32mm (minimum), 120mm (maximum)
• Switching point continuously adjustable
• Dimensions: Length is 140mm
Diameter is 23mm
• Supplied with mounting clamp and installation instructions
• Pipe diameter range is 23mm
• Supplied with mounting clamp and installation instructions
• Pipe diameter range is 23mm
Applications
• Ventilation systems in building automation
• Airflow monitoring in ventilation systems and/or suction operations
• Monitoring in HVAC applications
• Airflow monitoring in ventilation systems and/or suction operations
• Monitoring in HVAC applications
Certifications
• CE certified
• UL listed
• DIN EN 61000-6-2
• DIN EN 61000-6-3
• CRN certified
• IP65 rated
• UL listed
• DIN EN 61000-6-2
• DIN EN 61000-6-3
• CRN certified
• IP65 rated
