ifm PS4407, PS4 Series Pressure Sensor, 0bar Min, 0.6bar Max, 4 - 20 mA Output, Relative Reading

Part Number : PS4407

Availability: in stock

Detailed Description
Specifications
Downloads

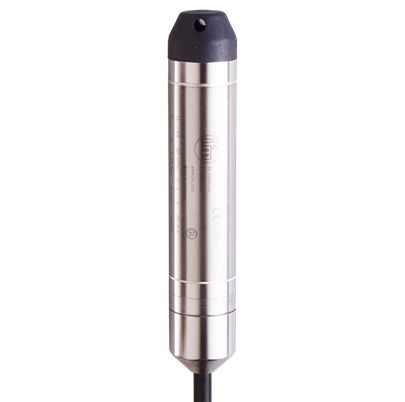

The ifm electronic hydrostatic submersible pressure transmitter is designed to effectively measure fluid pressure in industrial applications. With a robust measuring range of 0 to 0.6 bar, it is suited for a variety of media, including liquids, making it ideal for high-performance environments. The device ensures accurate performance with a high degree of repeatability and stability, providing absolute reliability in demanding conditions. Designed with a capillary tube for pressure compensation, it operates within ambient temperatures from -10 to 85°C and offers exceptional protection classified as IP 68. The transmitter’s durable stainless steel housing and FEP cable ensure longevity and resilience even in challenging situations, making it an essential tool for precise pressure monitoring.

Measuring range of 0 to 0.6 bar ensures precise readings across various liquid types
Robust stainless steel housing offers durability and resistance to environmental stress
Temperature compensation with a capillary tube enhances measurement accuracy
Operating voltage range from 10 to 30 DC allows for versatile integration into existing systems

Brand	ifm
Pressure Reading Type	Relative
Minimum Pressure Reading	0bar
Maximum Pressure Reading	0.6bar
Accuracy	0.5 %
Output Type	4 - 20 mA
Series	PS4

ifm PS4407, PS4 Series Pressure Sensor, 0bar Min, 0.6bar Max, 4 - 20 mA Output, Relative Reading

DOWNLOAD CATALOG
