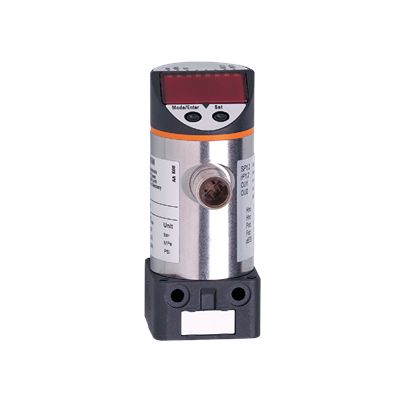

ifm PN7809, PN7 Series Pressure Sensor, -1bar Min, 1bar Max, PNP/NPN Output, Relative, Vaccum Reading

Part Number : PN7809

Availability: in stock

Detailed Description
Specifications
Downloads

The ifm electronic pressure sensor with display is designed for precise monitoring of pressure in industrial applications. This innovative device offers a measuring range of -1 to 1 bar, enabling it to handle various pressures while providing clear, real-time feedback through its alphanumeric 4-digit display and LED indicators. It is particularly suitable for compressed air, with an operating temperature range from 0 to 60°C, ensuring reliable performance in demanding environments. The robust construction features a stainless steel housing and includes gold-plated contacts, enhancing durability and reliability. With comprehensive short-circuit protection and the capability to accommodate both normally open and closed output functions, this sensor is a versatile addition to any monitoring system.

Compact cylindrical design allows for adaptable installation in tight spaces
Integrated watchdog ensures continuous operational reliability
Programmable switching logic provides flexibility to meet specific application needs
Features two digital outputs for enhanced functionality in control systems

Brand	ifm
Pressure Reading Type	Relative, Vaccum
Minimum Pressure Reading	-1bar
Maximum Pressure Reading	1bar
Accuracy	± 0.5 %
Output Type	PNP/NPN
Series	PN7
