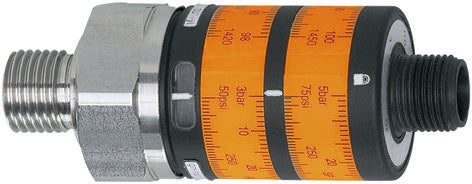

ifm PK7522, Pressure Sensor, 0bar Min, 100bar Max, Relay Output, Relative Reading

Part Number : PK7522

Availability: in stock

Detailed Description
Specifications
Downloads

PK7522 - Electronic pressure switch

Electronic pressure switch with 2 outputs
Switching points adjusted via adjustment wheels on the sensor
Mechanical lock prevents unintentional adjustment
With M12 plug connector
High protection class 67

Approvals

CE, UL

Brand	ifm
Pressure Reading Type	Relative
Minimum Pressure Reading	0bar
Maximum Pressure Reading	100bar
Accuracy	±2.5 %
Output Type	Relay
Media Measured	Fluid, Gas
Process Connection	G1/4
Electrical Connection	M12 Connector
Maximum Current	500 mA
Supply Voltage	9.6 → 32 V dc
Housing Material	FPM, PBT, PC, Stainless Steel
Maximum Operating Temperature	+80°C
Minimum Operating Temperature	-25°C
IP Rating	IP67
