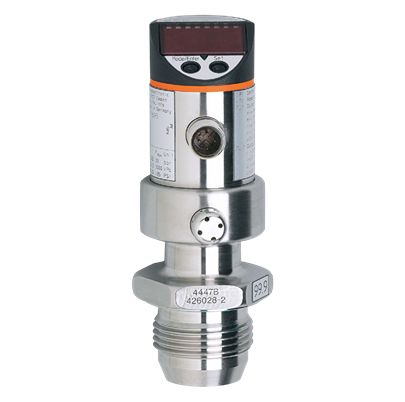

ifm PIM694, PIM Series Pressure Sensor, -1bar Min, 10bar Max, 4 - 20 mA, PNP Output, Relative, Vaccum Reading

Part Number : PIM694

Availability: in stock

Detailed Description
Specifications
Downloads

The ifm electronic pressure sensor with diagnostic function is expertly designed for pumps, optimizing performance and enhancing reliability. With a robust build, this sensor is capable of measuring pressures ranging from -1 to 10 bar, catering to various industrial applications. Its advanced features, including a 4-digit alphanumeric display and dual status LEDs, ensure that users can easily monitor operational status. Additionally, with gold-plated contacts and a freely rotatable housing, this sensor has been engineered for the demanding environments of the food and beverage industry, guaranteeing precise measurements and efficient diagnostics at all levels.

Integrated watchdog and reverse polarity protection enhance operational security
User-friendly programming button allows for easy adjustments
Short-circuit and overload protection guarantees reliable performance
Multiple outputs, configurable switching signals, and analogue signals increase versatility

Brand	ifm
Pressure Reading Type	Relative, Vaccum
Minimum Pressure Reading	-1bar
Maximum Pressure Reading	10bar
Accuracy	± 0.2 %
Output Type	4 - 20 mA, PNP
Series	PIM
