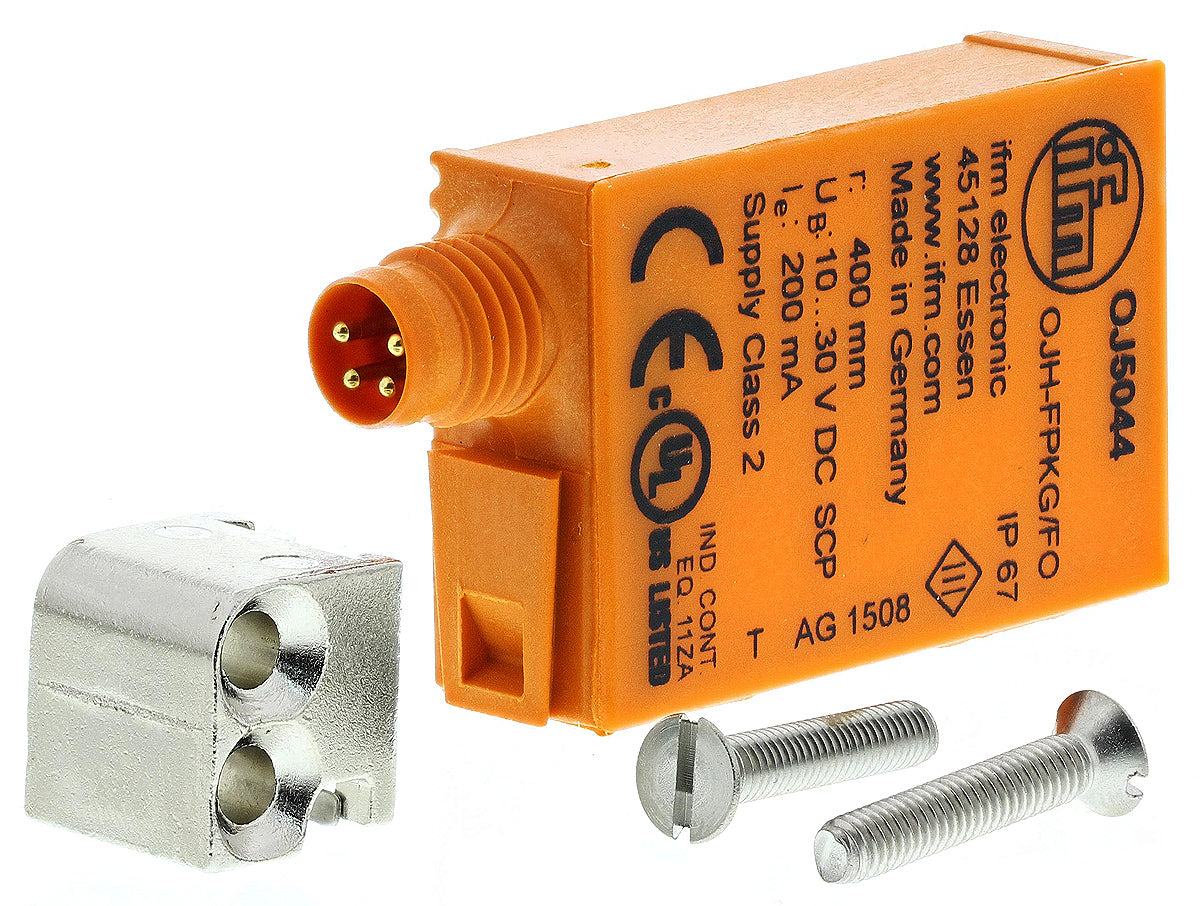

ifm OJ5044, Diffuse Photoelectric Sensor, Block Sensor, 15 mm → 400 mm Detection Range

Name: ifm OJ5044, Diffuse Photoelectric Sensor, Block Sensor, 15 mm → 400 mm Detection Range
Brand: ifm
SKU: OJ5044
Availability: OutOfStock

Part Number : OJ5044

Availability: in stock

Detailed Description
Specifications
Downloads

OJ Series - Photoelectric Sensors

Efector 200 range of Photoelectric Sensors.

Diffuse reflection, rectangular, plastic sensor with quick disconnect
Electrical design: DC PNP
Output: Light on / Dark on programmable
Current Rating: 200 mA
Switching status LED (yellow)
Power LED (green)
Non latching short circuit protection
Overload and reverse polarity protection
IP rating: IP67
Electronic lock
External teach function

Approvals

CE, UL

Supplied with

Basic clip, E20964, 2 mounting screws, M3 x 16, 2 spring washers, 2 nuts.

Brand	ifm
Sensor Style	Block
Detection Type	Diffuse
Detection Range	15 mm → 400 mm
Output Type	PNP
Electrical Connection	M8 4 Pin Connector
Maximum DC Voltage	30V
Light Source	LED
IP Rating	IP67
Maximum Current	200 mA
Housing Material	ABS
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+60°C
